Application Scenarios

Ideal for civilian recreational handgun sport‑shooting, range practice and hobby target activities. Extra‑low‑profile RMS footprint minimizes height on pistol slides. Suited for distributors supplying ultra‑compact micro aiming optics. B2B wholesale‑only, no direct retail sales. Not for tactical/law‑enforcement.

Compatible Equipment

Supports Picatinny‑21mm rail and RMS footprint. MOS adapter plate included, fits civilian recreational handguns and rifles with RMS cut. Adapter needed for non‑standard interfaces.

Instructions for Use

1. Mount optic to RMS footprint or Picatinny‑21mm rail, fasten mounting screws with included wrench.

2. Install CR1632 battery following polarity marks inside battery compartment.

3. Power‑on, select suitable brightness among 8 daylight and 2 NV modes.

4. Perform windage‑elevation zero‑ing at shooting‑range before field use.

5. Auto‑sleep activates after 4‑minute idle; shake sight to wake.

6. Remove battery during long‑term storage, cover lens and keep inside original box.

Precautions

1. Do NOT stare directly into LED light source, risk of eye injury.

2. IPX7 for short‑time submersion; avoid permanent underwater placement.

3. Complete zero‑calibration at real shooting distance before outdoor application.

4. Remove battery for long‑term storage to prevent electrolyte leakage damaging tiny internal parts.

5. Civilian recreational use only; military‑tactical use is prohibited.

6. Only use supplied lens cloth for optical cleaning; coarse fabrics scratch lens coating.

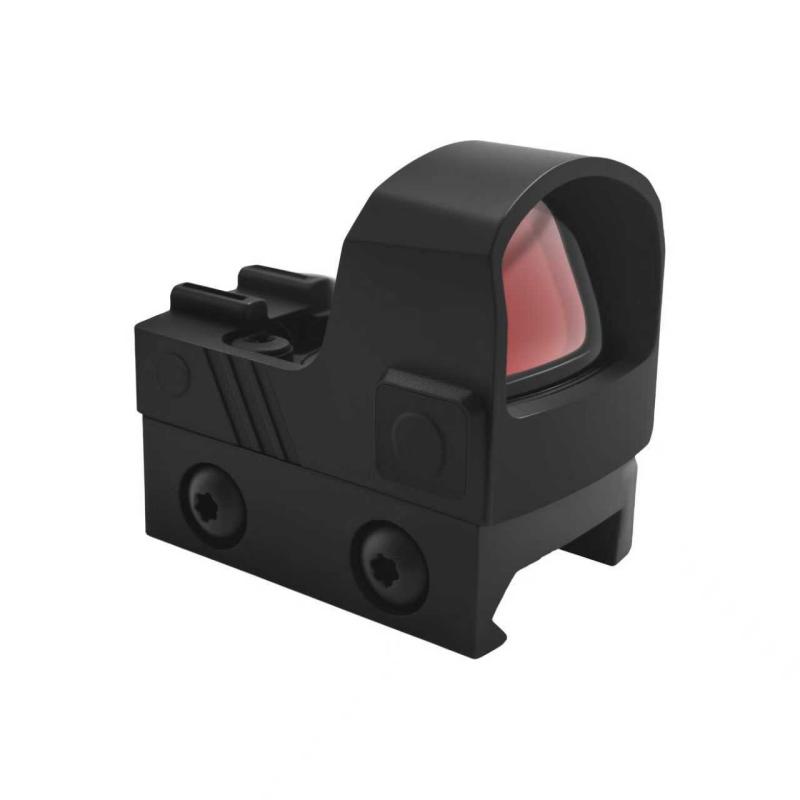

The JR‑013 V13 is the smallest micro reflex sight in our lineup, optimized for shooters seeking maximum concealment and minimal footprint on pistol slides or compact rifles. At 43×28×27mm, it sits lower and shorter than the RMR‑compatible V11/V12.

23×17mm window with single red dot reticle, 8 brightness levels + 2 NV settings. Red‑coated lens. Anodized 6061 aluminum body. Windage/elevation ≥±50 MOA, 1 MOA clicks.

IPX7 waterproof. 1500g shock resistance over 100 cycles with ≤2 MOA deviation. CR1632 battery. RMS mounting footprint with MOS adapter plate included. Motion wake‑up (4‑minute sleep, shake to wake).

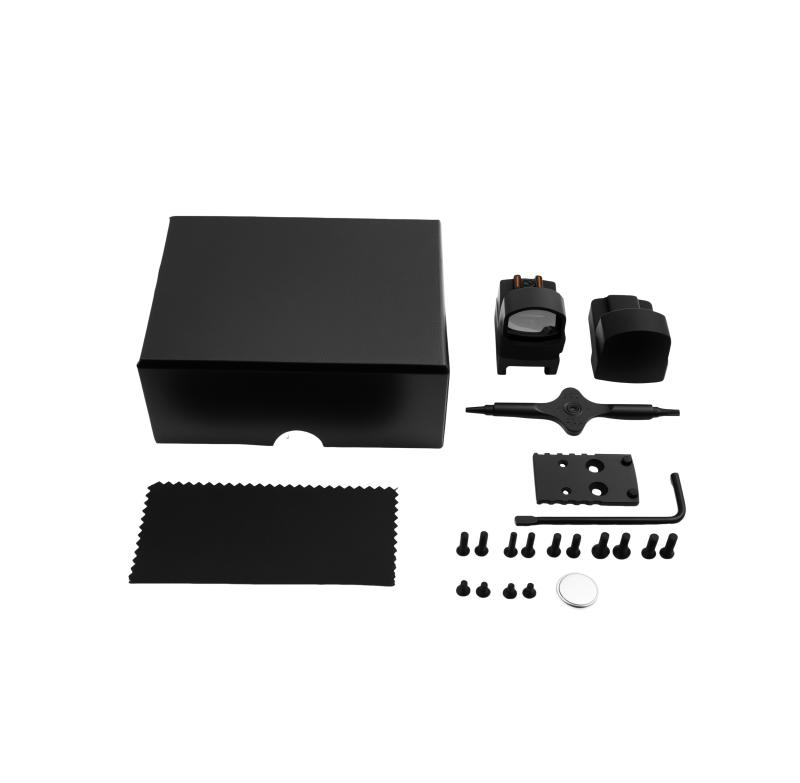

Full accessories set packed in color box: dust cover, lens cloth, manual, wrench, MOS adapter plate, screw set and CR1632 battery. 50 PCS per export carton.

B2B OEM options include custom reticle pattern, laser‑engraved logo and private‑label packaging. Wholesale supply for overseas distributors, no direct‑to‑consumer sales.
