Application Scenarios

Ideal for civilian recreational handgun sport‑shooting, range practice and hobby target activities. The 3‑dot reticle offers extra reference points for fast close‑range aiming. Compact footprint for slide‑mount installation. For B2B wholesale distributors only, not for end‑user direct retail. Not intended for tactical or law‑enforcement purposes.

Compatible Equipment

Supports Picatinny‑21mm rail and RMR footprint. Includes MOS adapter plate, fits civilian sport‑shooting handguns and rifles with corresponding cut. For civilian recreational use only. Adapter required for non‑standard slide cuts.

Instructions for Use

1. Align optic footprint with RMR slide cut or mount onto Picatinny‑21mm rail, tighten screws with included wrench.

2. Insert CR1632 battery following polarity marks inside battery compartment.

3. Power‑on, adjust brightness among 8 daylight and 2 night‑vision levels according to ambient light.

4. Complete windage and elevation zero‑ing at shooting‑range before live‑fire application.

5. Sight enters auto‑sleep after 4‑minute idle; shake the optic to wake and restore brightness setting.

6. Remove battery for long‑term storage; attach dust cover and store in original color box.

Precautions

1. Do NOT stare directly into LED light source, avoid eye injury.

2. IPX7 supports short‑term shallow submersion; do not keep submerged for extended periods.

3. Always perform zero‑calibration at actual shooting distance before field usage.

4. Remove battery for long‑term storage to prevent electrolyte leakage damaging micro‑electronics.

5. For civilian recreational sport‑shooting and hunting ONLY; military / law‑enforcement usage is prohibited.

6. Clean lens only with supplied lens cloth; rough paper or fabric will scratch optical coatings.

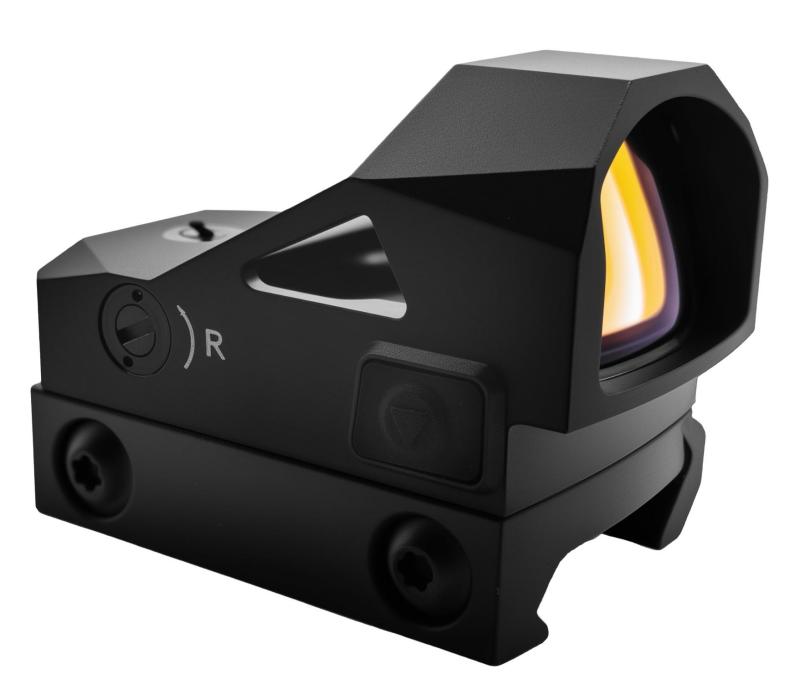

The JR‑012 V12 uses the identical compact micro RMR body as the V11 single‑dot model, with the key difference being a three‑dot reticle pattern. The three‑dot layout (typically center dot plus two flanking dots) provides an alternative aiming reference that some shooters prefer for rapid target acquisition.

Same core specs: 23×17mm window, red reticle with 8 brightness levels + 2 NV settings, red‑coated lens, anodized 6061 aluminum housing (47×31×27mm), windage/elevation ≥±50 MOA, 1 MOA clicks.

IPX7 waterproof. 1500g shock resistance over 100 cycles with ≤2 MOA deviation. CR1632 battery. Picatinny/RMR compatible with MOS adapter plate included. Motion wake‑up (4‑minute sleep, shake to wake).

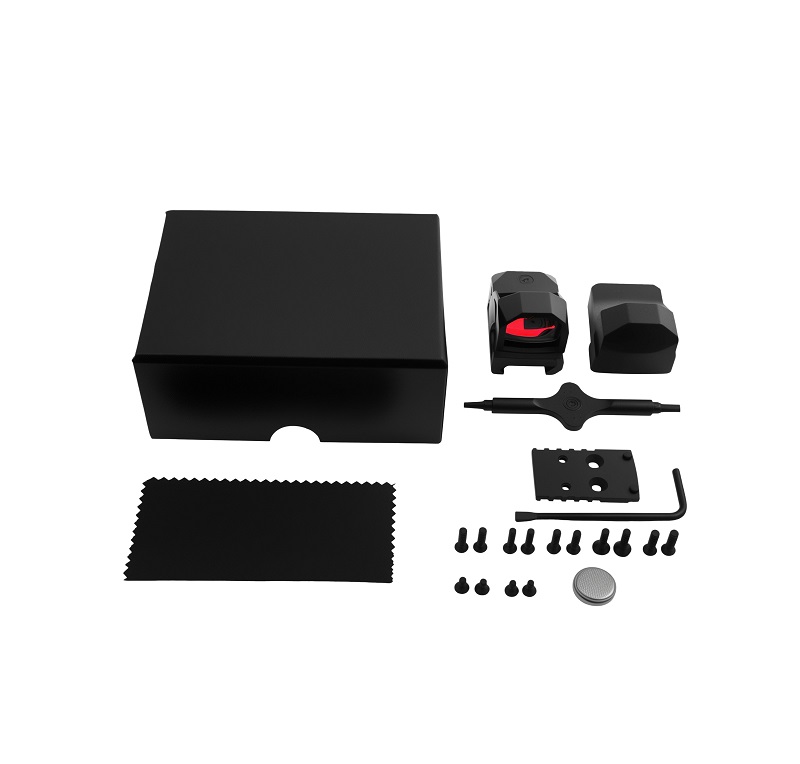

Full‑set accessories: color box, dust cover, lens cloth, manual, wrench, MOS adapter plate, screw kit and CR1632 battery. 50 PCS per export carton.

B2B service includes custom reticle design, laser‑engraved logo and private‑label packaging. Exclusively for wholesale partners, no direct retail sales.
