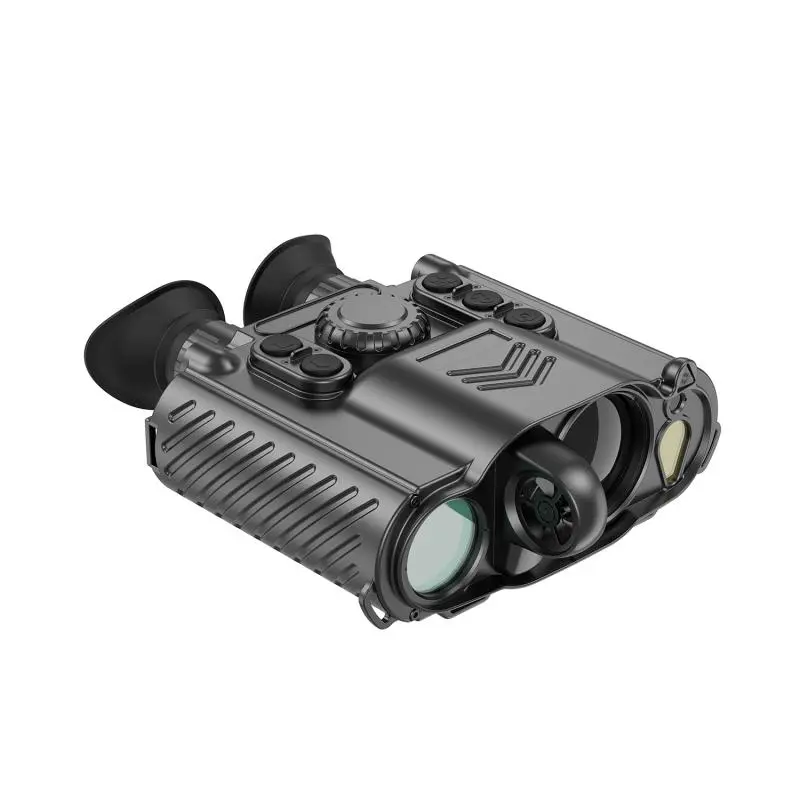

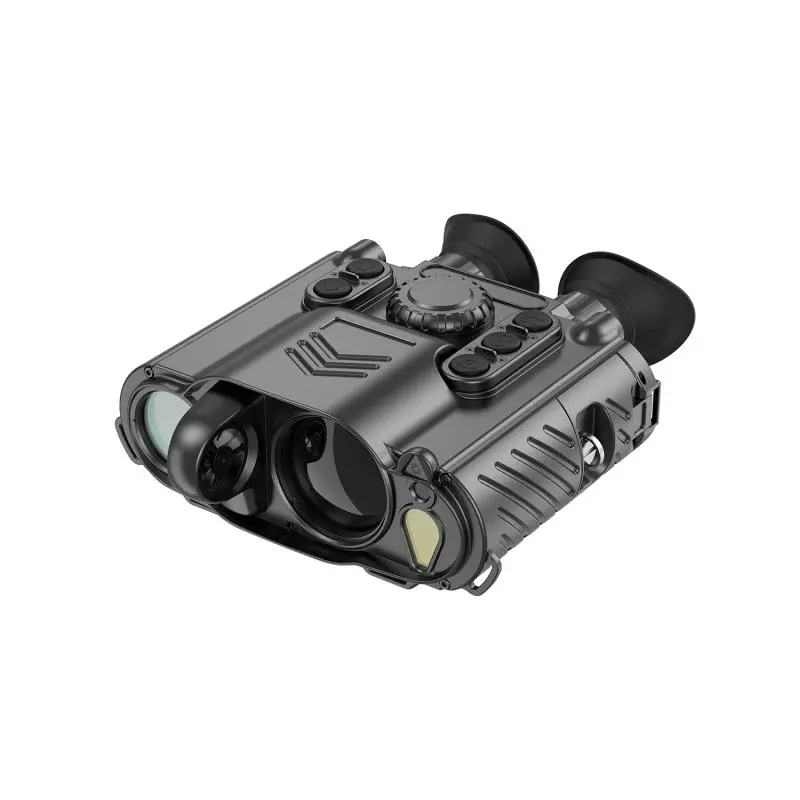

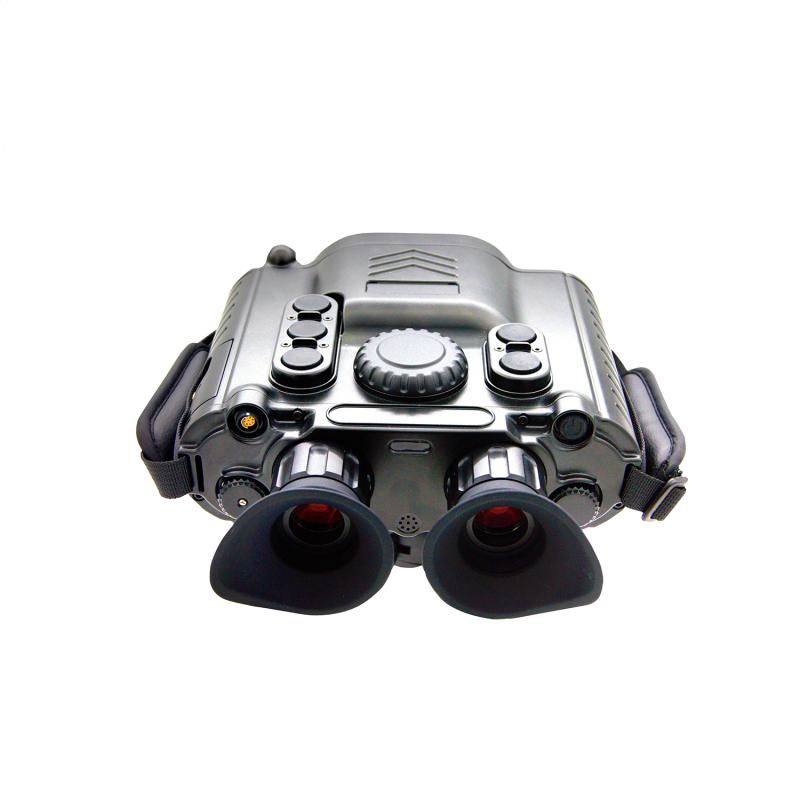

Ferolix FP7-U Aiming Auxiliary System | Thermal + Visible + Ballistic Calculator Binocular
Application Scenarios
Civilian long-range Outdoor Observation, recreational precision shooting and wildlife research. The ballistic calculator supports wind and angle compensation. For wholesale distributors only.
Compatible Equipment
Handheld binocular. ICR18650 x4. USB/RS232/PAL/DC12V. WiFi control and image transmission.
Instructions for Use
Insert 4 ICR18650 batteries.
Boot; wait for thermal calibration and GPS lock.
Select ballistic profile (up to 10 custom).
Measure meteorology (temp/humidity/pressure/wind).
LRF target; system computes wind deflection and angle.
Observe through binocular OLED; record to 128GB.
Precautions
Do not view sun or lasers.
IP67; short submersion only.
Allow GPS lock outdoors.
Remove batteries for long storage.
Civilian observation and sport shooting only.
Clean optics with cloth.
FP7-U integrates thermal (UFPA 640x512, 12um, NETD ≤25mK, 50mm F1, 8.8x7°), visible CMOS 1920x1080 (WFOV 40x32°, NFOV 0.35x0.28°), 1535nm LRF (30m-3km, ±2m), GPS/Beidou/GLONASS (5m CEP), digital compass (0.1° pitch, 0.2° azimuth RMS).
Meteorology: temp -40 to +60°C, humidity 0-100%RH, wind ±25m/s, pressure 200-1100hPa. Ballistic calculator: 10 profiles, 267 ammo types, wind deflection 0.5mil, angle 0.5mil.
1920x1080 binocular OLED, diopter -5 to +5. 128GB (video ≥4h, ≥10k BMP). ICR18650 x4, ≥7h. USB/RS232/PAL/DC12V. WiFi. 210x178x75mm, ≤1.75kg. IP67. -40 to +60°C.
B2B OEM and bulk supply.

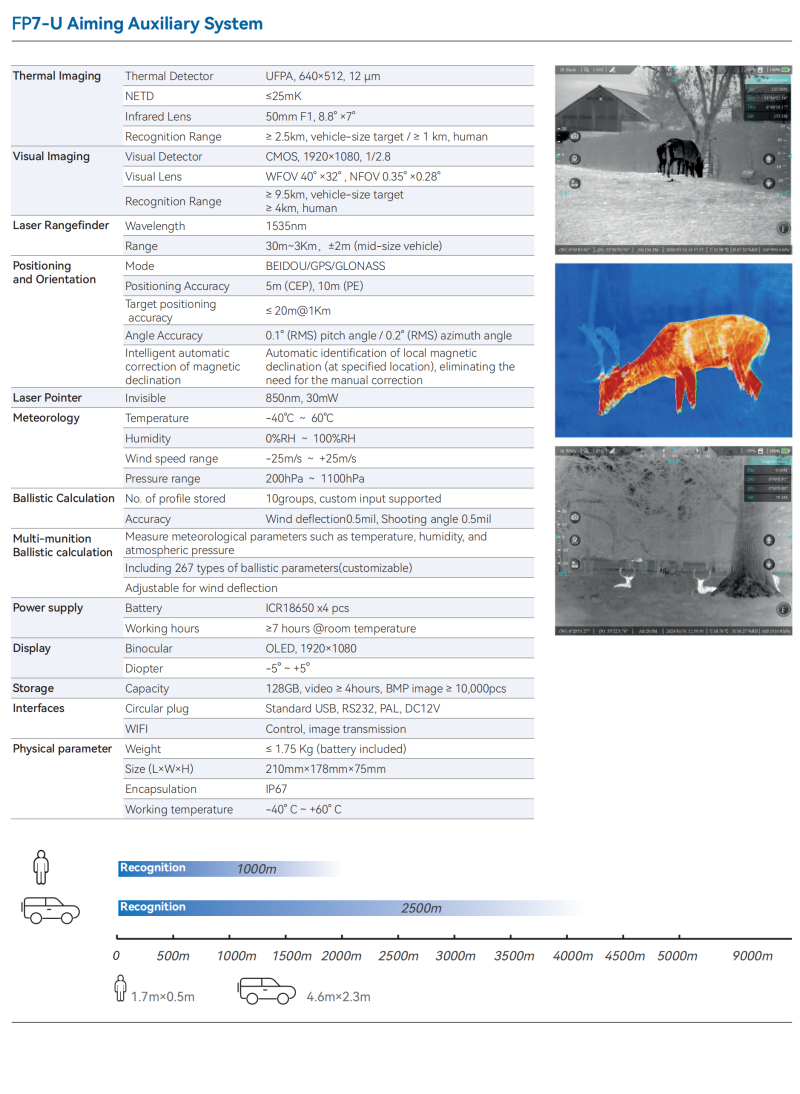

| 参数项 | 规格 |
|---|---|
| thermal detector | UFPA 640x512, 12um |
| Thermal NETD | ≤25mK |
| Thermal Lens | 50mm F1, 8.8x7° |
| Thermal Recognition | ≥2.5km vehicle / ≥1km human |
| Visible Sensor | CMOS 1920x1080, 1/2.8" |
| Visible FOV | WFOV 40x32° / NFOV 0.35x0.28° |
| Visible Recognition | ≥9.5km vehicle / ≥4km human |
| LRF Wavelength | 1535nm |
| LRF Range | 30m-3km, ±2m |
| Positioning | Beidou/GPS/GLONASS, 5m CEP |
| Target Positioning | ≤20m @ 1km |
| Compass Angle | 0.1° pitch / 0.2° azimuth RMS |
| Laser Pointer | 850nm invisible, 30mW |
| Meteorology | Temp -40~60°C, humidity 0-100%RH, wind ±25m/s, pressure 200-1100hPa |
| Ballistic Profiles | 10 groups, 267 ammo types |
| Ballistic Accuracy | Wind 0.5mil / angle 0.5mil |
| Display | Binocular OLED 1920x1080 |
| Diopter | -5° ~ +5° |
| Storage | 128GB (video ≥4h, ≥10k BMP) |
| Power | ICR18650 x4 |
| Battery Life | ≥7h |
| Interfaces | USB / RS232 / PAL / DC12V |
| WiFi | Control + image transmission |
| Weight | ≤1.75kg |
| Dimensions | 210 x 178 x 75 mm |
| Encapsulation | IP67 |
| Working Temp | -40°C ~ +60°C |

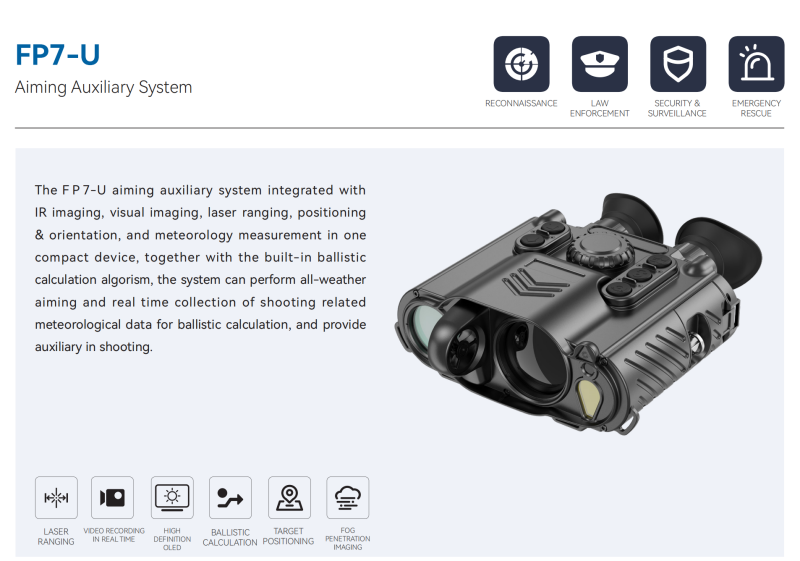

An aiming auxiliary system combines thermal/visible observation, laser ranging, satellite positioning and a ballistic calculator in one handheld binocular. The built-in meteorology sensor feeds real-time environmental data into the ballistic solver. Used by precision shooters and long-range observers.
