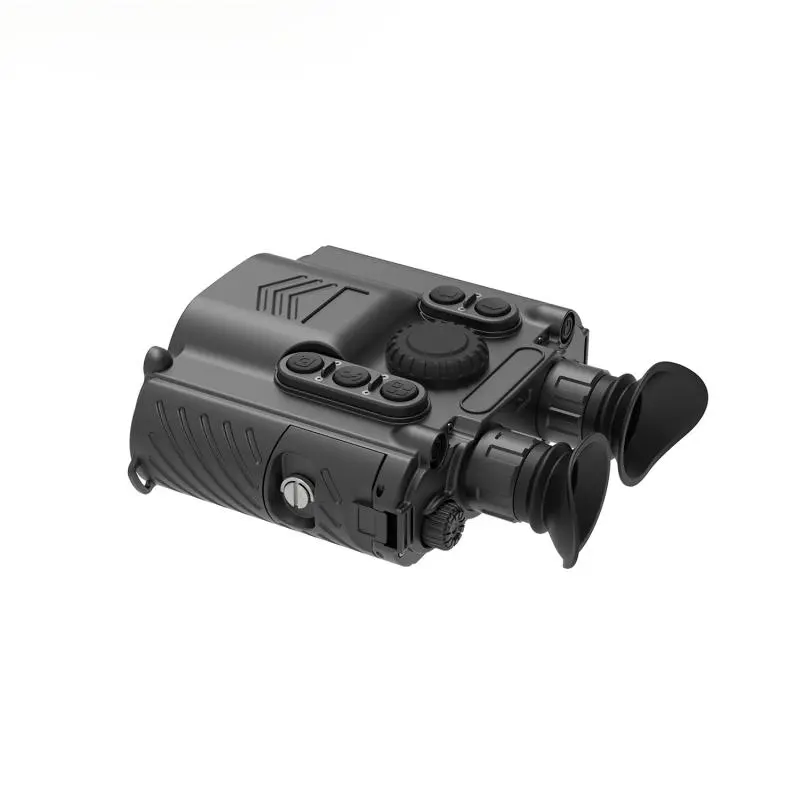

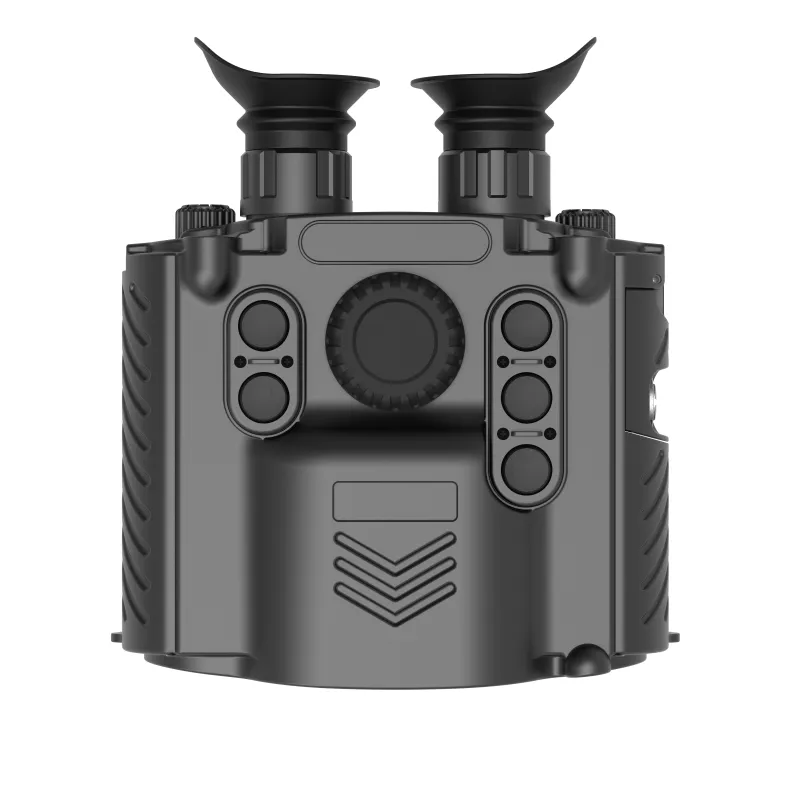

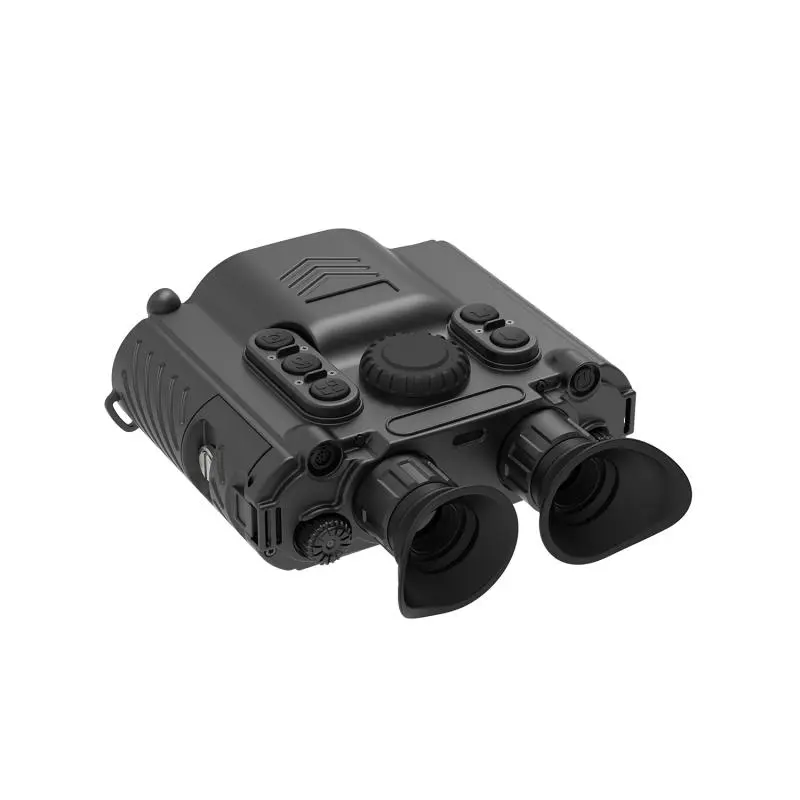

Ferolix FP68-U Multifunction Thermal Camera | 640x512 Handheld with LRF + GPS
Application Scenarios
Civilian outdoor long-range observation, wildlife research, border/perimeter monitoring, emergency rescue support and industrial inspection. For wholesale distributors supplying professional observation equipment.
Compatible Equipment
Handheld binocular unit. ICR18650 x4. USB/HDMI/DC/PAL interfaces. External power supported.
Instructions for Use
Insert 4 ICR18650 batteries.
Boot; wait for thermal self-calibration and GPS lock.
Select thermal or visible channel; use digital zoom.
Press LRF button for range readout; GPS coordinates displayed.
Record video/photo to 64GB memory.
Transfer via USB/HDMI; power off and store.
Precautions
Do not view sun or lasers.
IP67; short submersion only.
Allow GPS time to lock outdoors.
Remove batteries for long storage.
Civilian observation only.
Clean optics with microfiber cloth.
FP68-U integrates three channels: thermal (640x512 uncooled microbolometer, NETD ≤25mK, 7.32x5.86° FOV), visible CMOS 1920x1080 (44x34° to 2.4x1.8°), and 1535nm eye-safe LRF (≥3km vehicle, ≥5km large building, ±1m accuracy).
Positioning: Beidou/GPS/GLONASS, WGS84/CGCS2000, self-positioning ≤±10m, target positioning ≤±20m. Digital compass azimuth 0.5° RMS, pitch 0.1° RMS.
1280x1024 binocular OLED eyepiece, diopter -5 to +5. 64GB storage (video ≥2h, ≥10k BMP). ICR18650 x4, ≥6h. USB/HDMI/DC/PAL. 235x205x85mm, 2.1kg. IP67. Working -40 to +60°C.
B2B OEM and bulk supply.

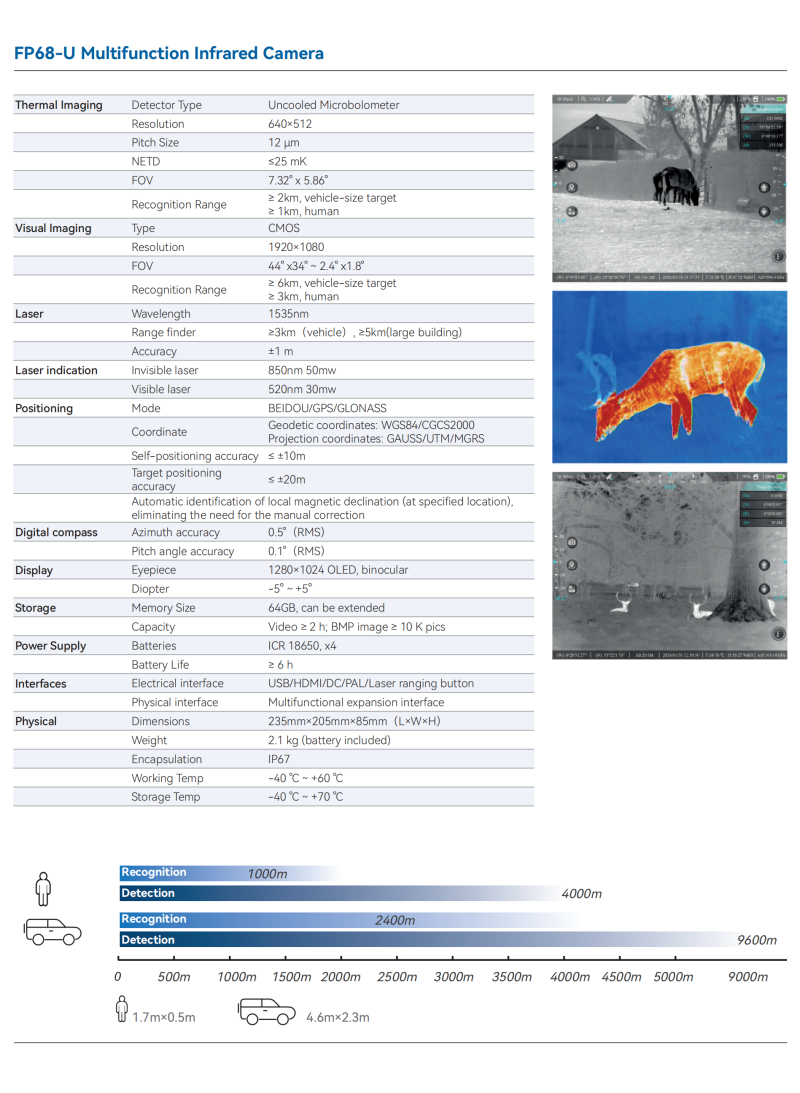

| 参数项 | 规格 |
|---|---|
| thermal detector | Uncooled Microbolometer |
| Thermal Resolution | 640x512 |
| Pixel Pitch | 12um |
| NETD | ≤25mK |
| Thermal FOV | 7.32° x 5.86° |
| Thermal Recognition | ≥2km vehicle / ≥1km human |
| Visible Sensor | CMOS 1920x1080 |
| Visible FOV | 44x34° ~ 2.4x1.8° |
| Visible Recognition | ≥6km vehicle / ≥3km human |
| LRF Wavelength | 1535nm |
| LRF Range | ≥3km vehicle / ≥5km large building |
| LRF Accuracy | ±1m |
| Positioning | Beidou/GPS/GLONASS |
| Self-positioning | ≤±10m |
| Target Positioning | ≤±20m |
| Compass Azimuth | 0.5° RMS |
| Compass Pitch | 0.1° RMS |
| Display | 1280x1024 OLED, binocular |
| Diopter | -5° ~ +5° |
| Storage | 64GB (video ≥2h, ≥10k BMP) |
| Power | ICR18650 x4 |
| Battery Life | ≥6h |
| Interfaces | USB / HDMI / DC / PAL / LRF button |
| Dimensions | 235 x 205 x 85 mm |
| Weight | 2.1kg |
| Encapsulation | IP67 |
| Working Temp | -40°C ~ +60°C |
| Storage Temp | -40°C ~ +70°C |

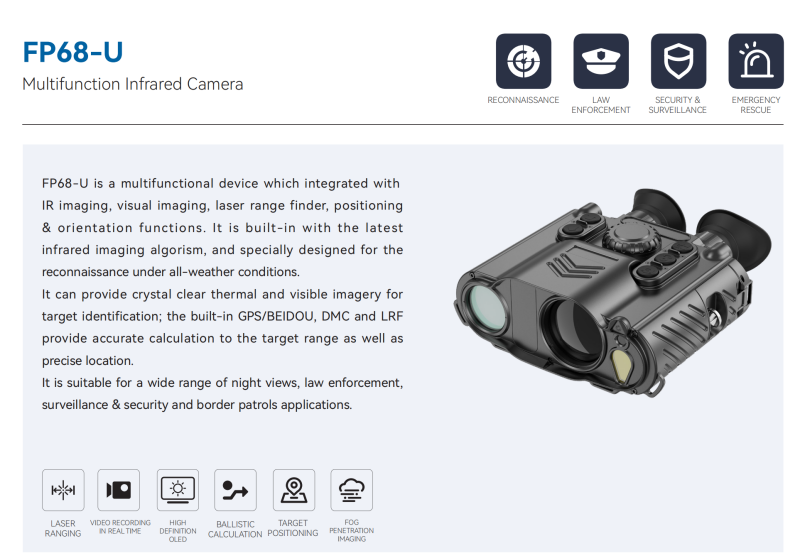

A multifunction handheld thermal camera combines thermal imaging, visible camera, Laser Rangefinder and satellite positioning in one binocular. The 1535nm laser is eye-safe. GPS/Beidou coordinates plus digital compass allow target location logging. Used by outdoor observers, wildlife researchers and rescue teams.
