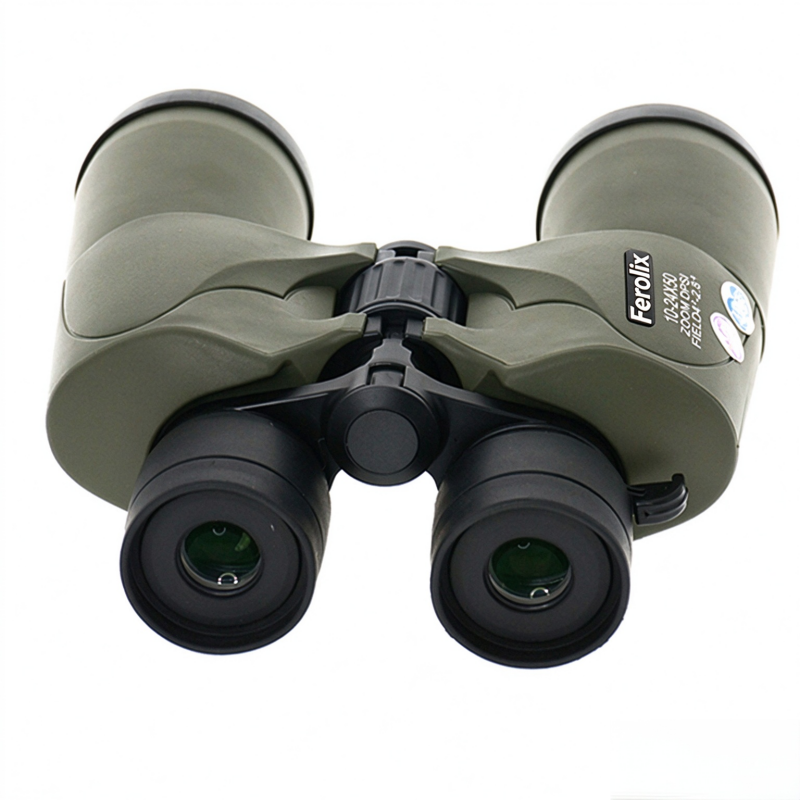

J01-102450 10-24X Zoom Binoculars are Porro prism outdoor binoculars produced by China optical factory. Equipped with 50mm Objective Lens, MC optical coating and IP3 splash-proof aluminum housing. Variable magnification design allows users to switch observation range freely. Multiple color choices and complete accessory kit. Suitable for outdoor retail and wholesale business. We supply directly to global distributors with factory price and customizable service.
Our J01-102450 zoom binocular is a versatile variable power optical instrument built for outdoor applications, designed specifically for global wholesalers, outdoor retailers and e-commerce distributors. Manufactured in our China optical factory, this binocular delivers reliable optical performance with competitive MOQ and flexible customization support.
This binocular features 10X to 24X continuous zoom magnification paired with a large 50mm objective lens. The 18mm eyepiece brings comfortable viewing experience, with eye relief ranging from 12.5mm to 15.5mm. The field of view varies from 4.5° to 2.6° corresponding to different magnification levels. We adopt classic BK7 Porro prism structure, all lenses and prisms are made of high-quality optical glass with multi-coated (MC) treatment. The light transmittance reaches up to 69%, ensuring clear and bright images in normal daylight and twilight environments. Twilight factor ranges from 22.3 to 32.23 for low-light observation.
The optical system supports center focus, together with -5 to +5 diopter adjustment and interpupillary distance adjustment from 59.2mm to 73mm, which can fit most users. The close focus distance is 5m to 8m. The resolving power is 5.8"-6.18", meeting standard Outdoor Observation requirements.

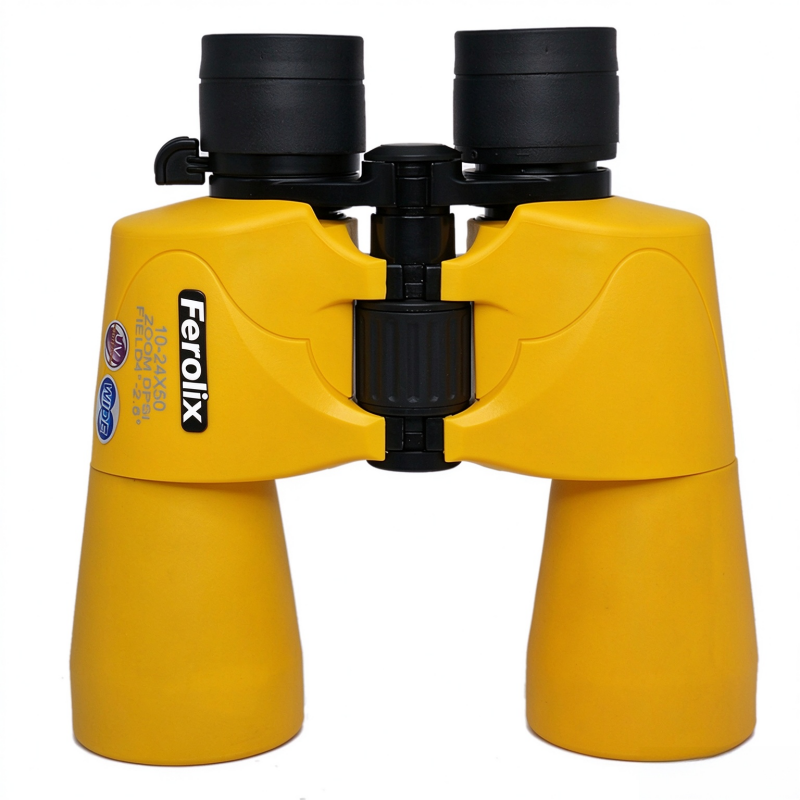

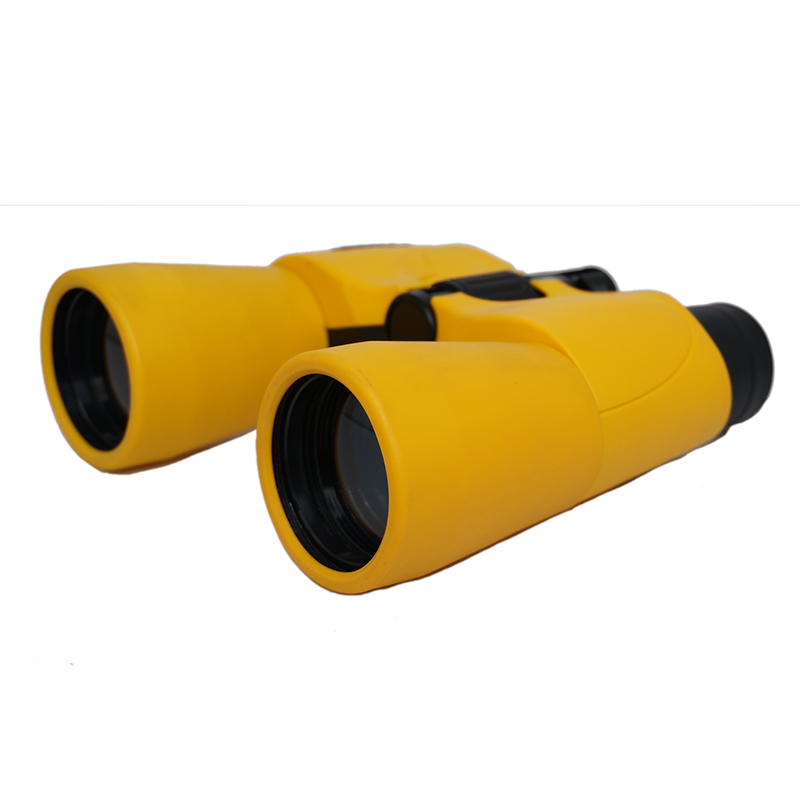

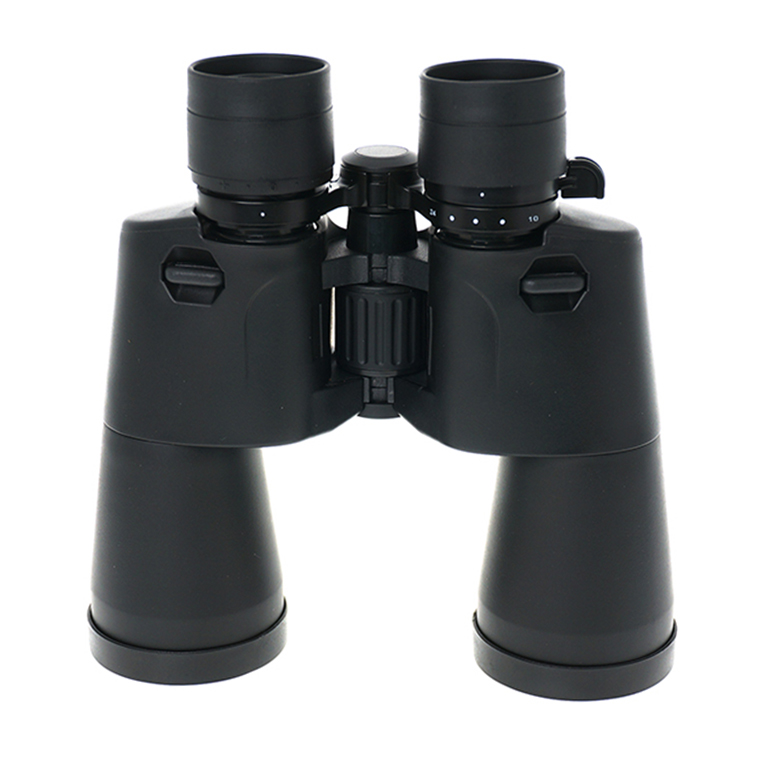

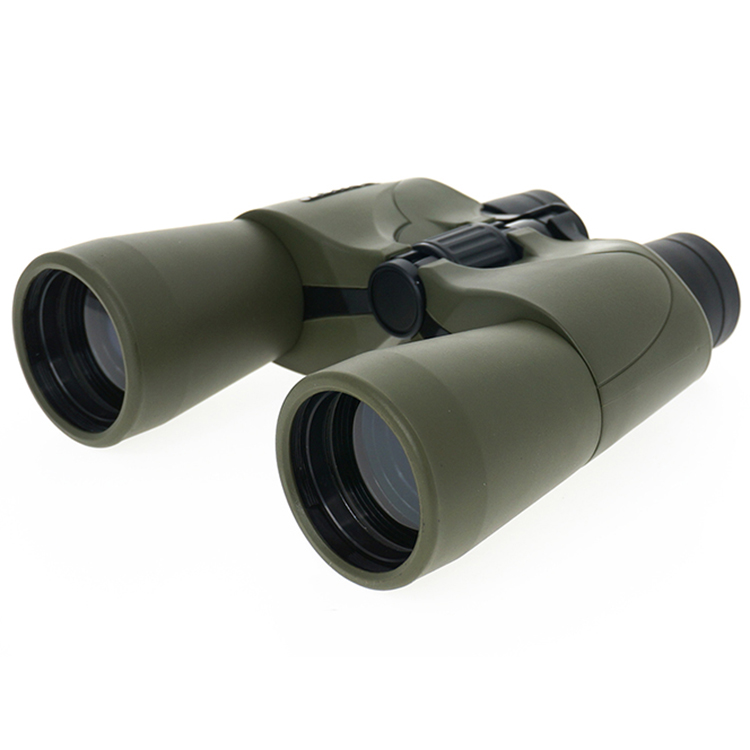

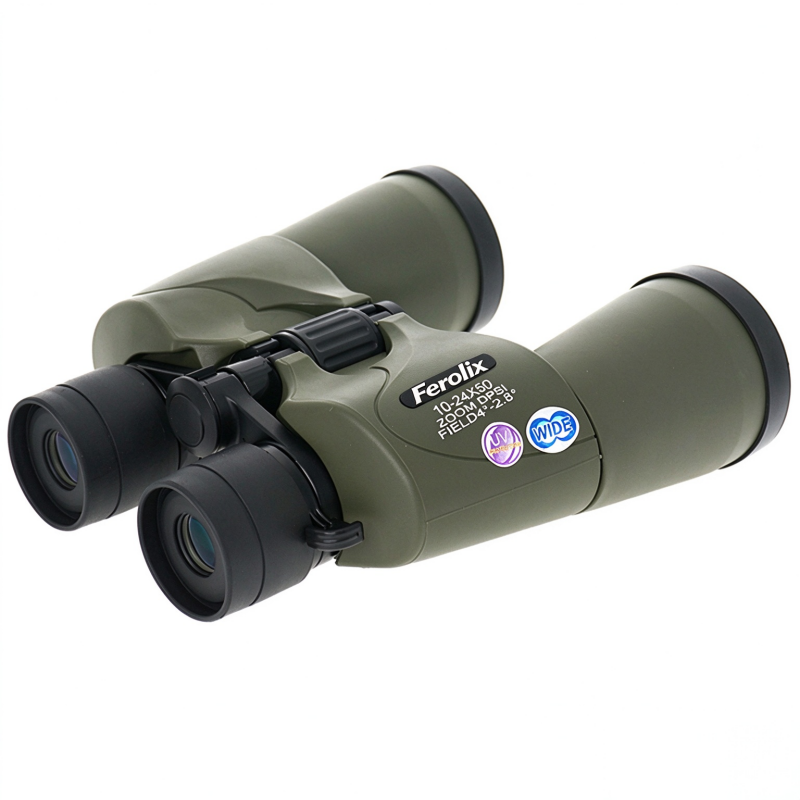

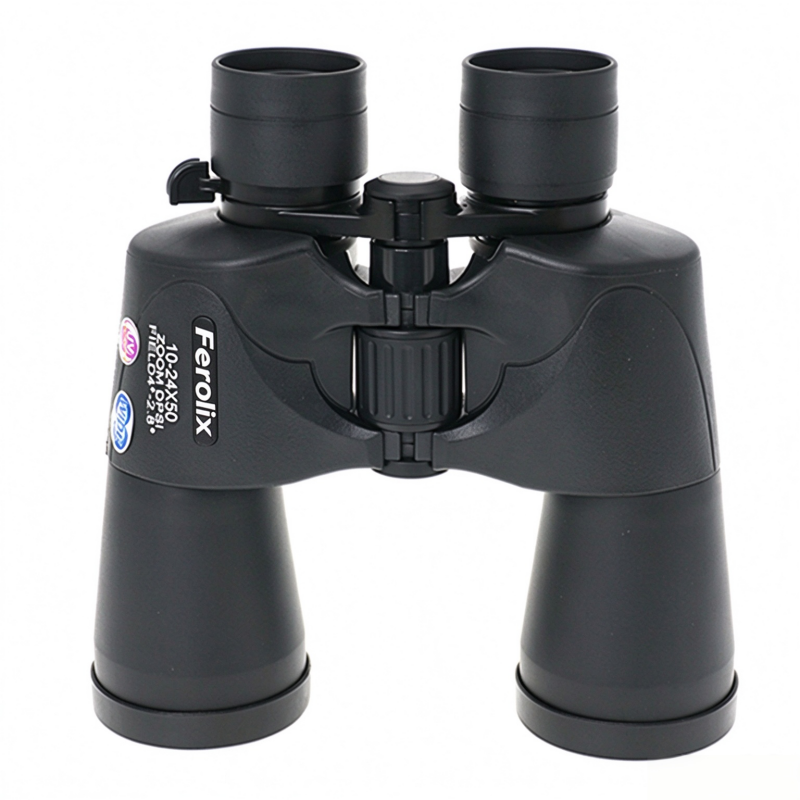

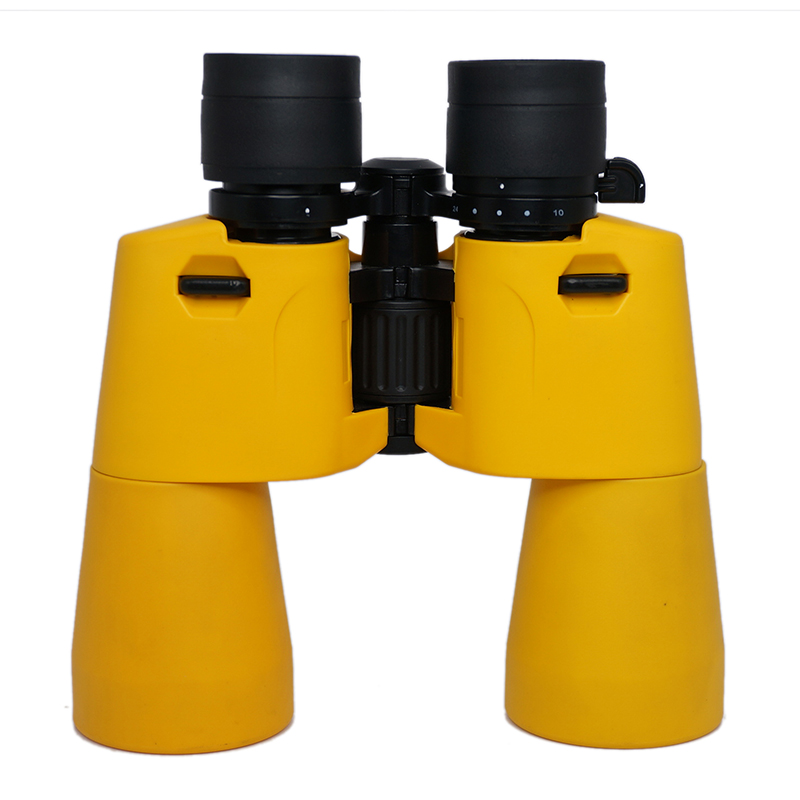

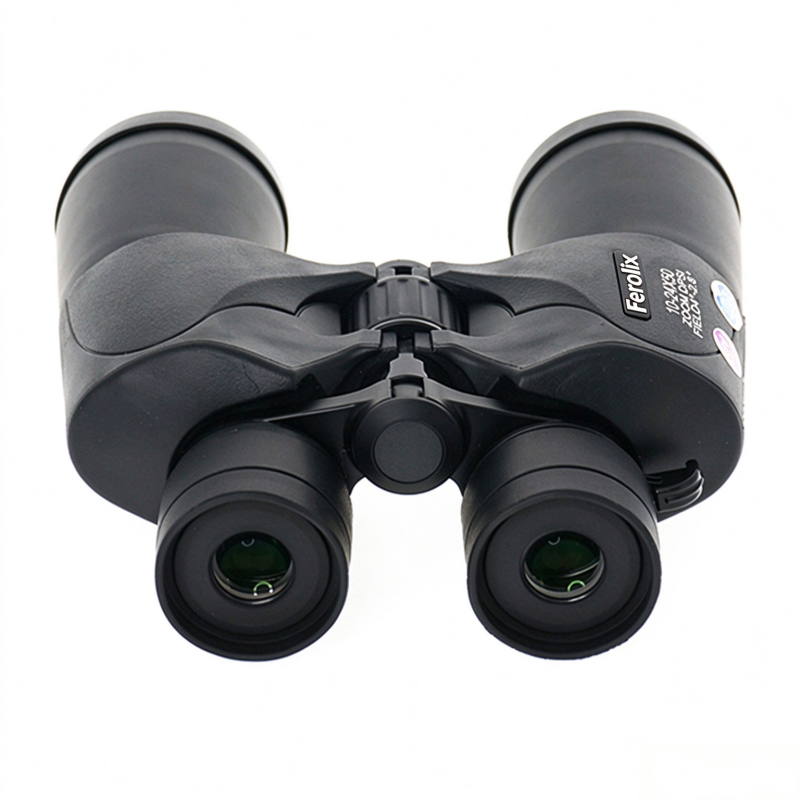

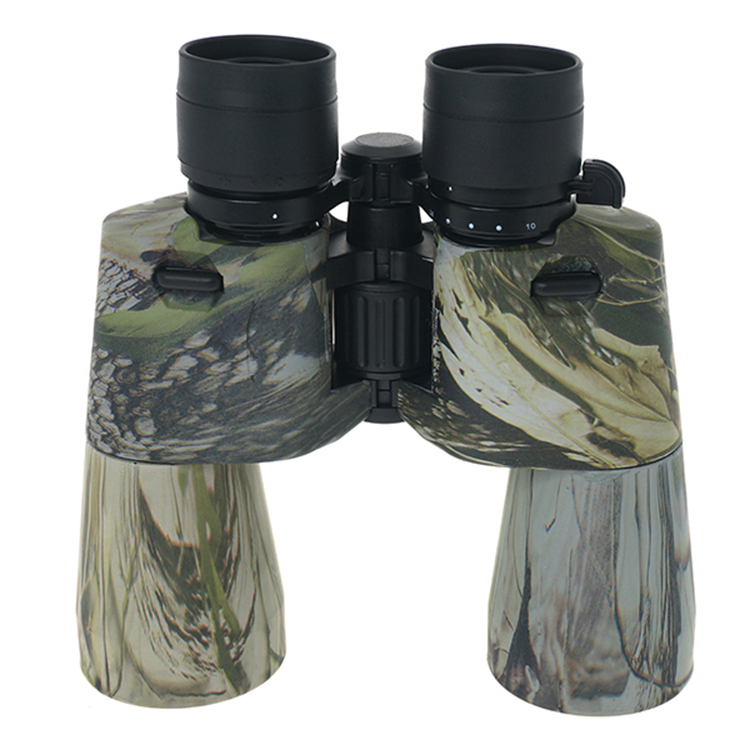

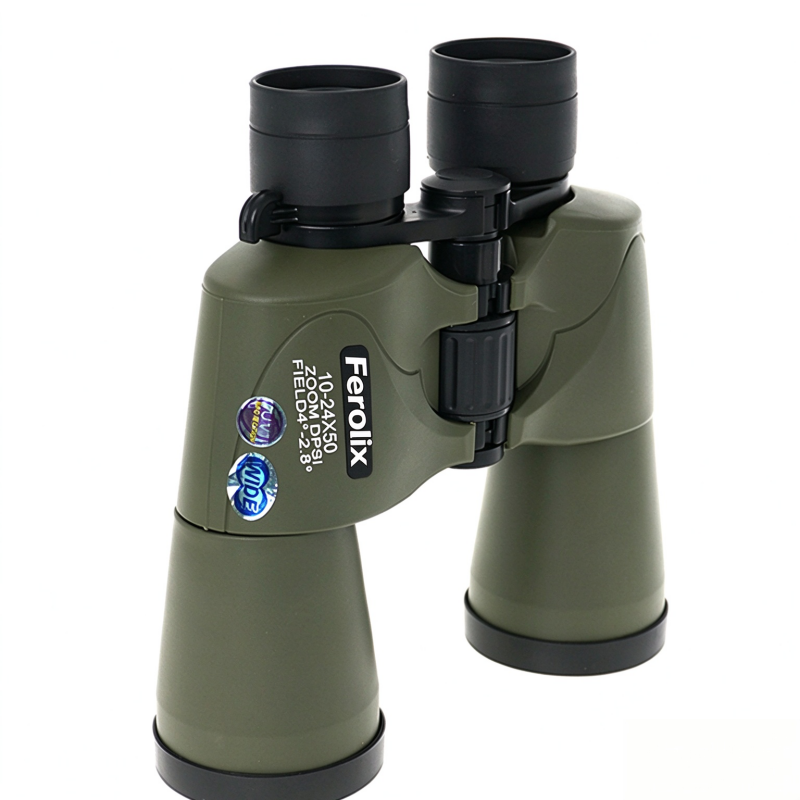

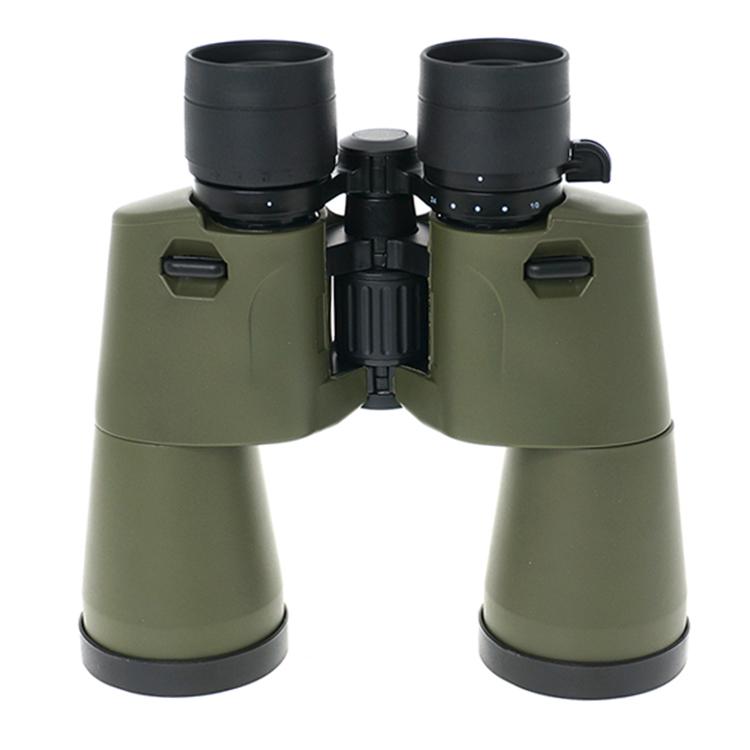

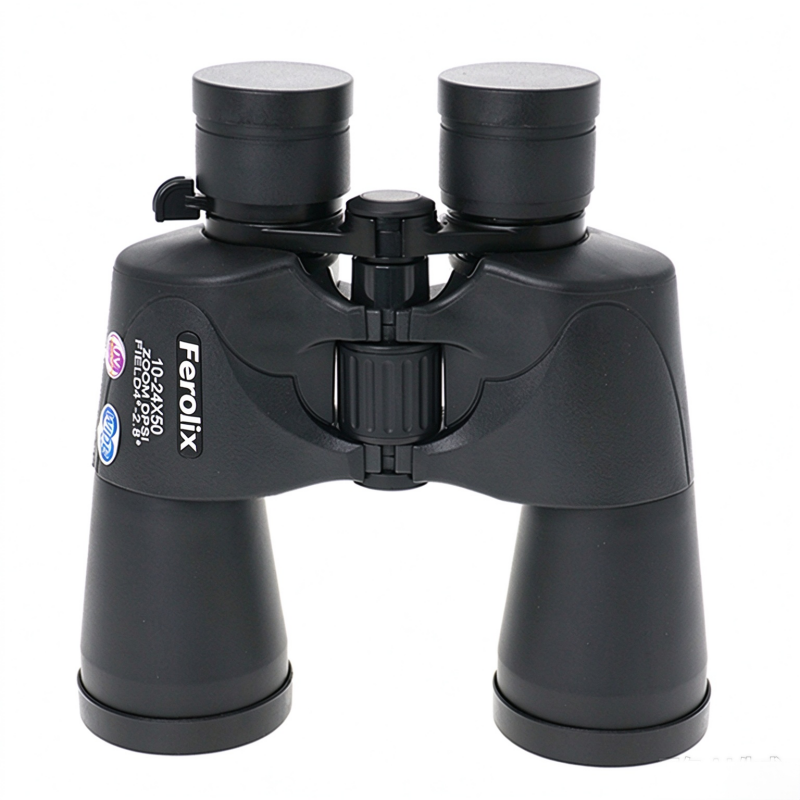

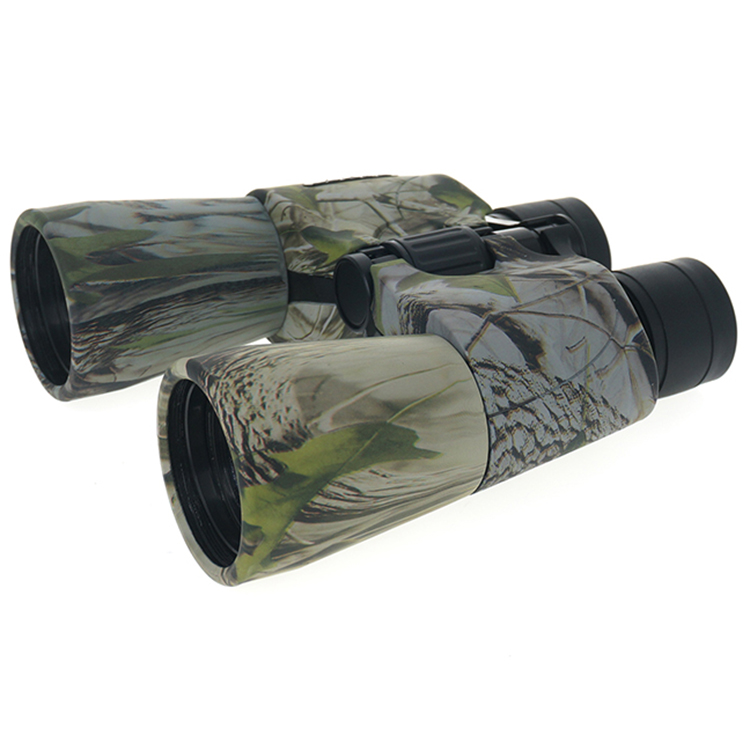

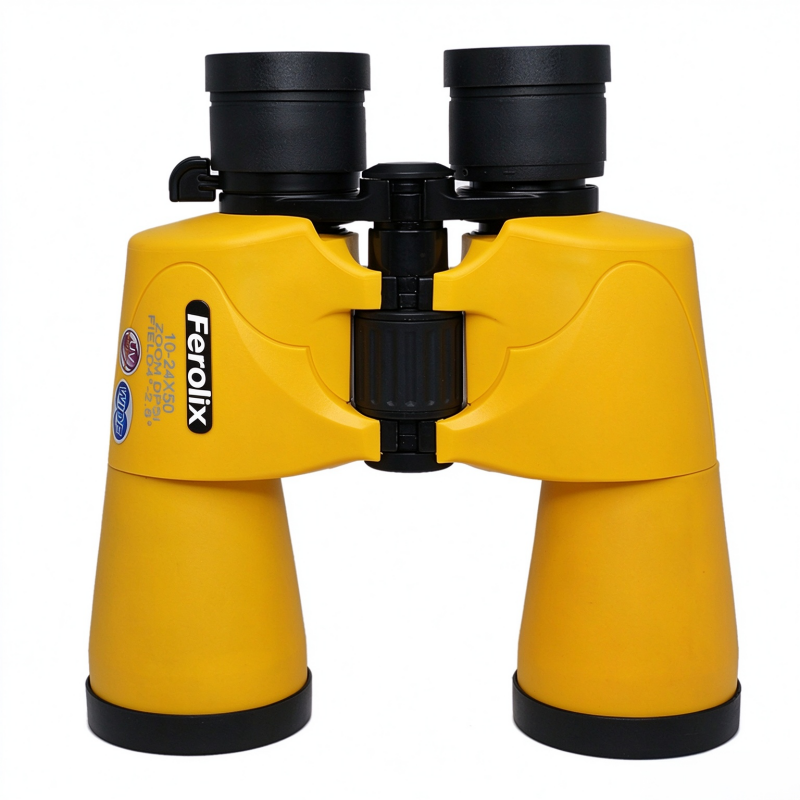

For the body structure, the main frame uses aluminum material with PVC surface cover, durable and lightweight. Single unit weight is only 949g. It reaches IP3 waterproof rating, which can resist limited water splashes for daily outdoor use. Multiple color options are available: yellow, green, black and maple color to match different market preferences. The overall dimension is 195×184×65mm.
Full set accessories include soft storage bag, shoulder strap, lens cleaning cloth and desiccant. Each color box package weighs 292g, carton packing: 20 pcs per carton, carton size 45×45×44cm, gross weight 26kgs, net weight 25kgs. Stable packing protects goods during long sea transport.
This C+ grade binocular is widely used for bird watching, hiking, travel sightseeing, wildlife observation and sporting events. As a direct optical manufacturer from China, we provide stable bulk supply. We accept OEM & ODM service, such as custom logo printing, package customization. We support small trial order for distributors to test local market, welcome worldwide dealers to contact us for price list and product samples.
| Item | Specification |
|---|---|
| Model No. | J01-102450 |
| Magnification | 10X-24X |
| Eyepiece diameter | 18mm |
| Objective lens | 50mm |
| Angle of view | 4.5°-2.6° |
| Field of view | 78.8-45m/1000m, 236-136ft/1000yds |
| Eye relief | 15.5mm-12.5mm |
| Exit pupil diameter | 5mm-2.3mm |
| Close focus | 5m~8m |
| Prism | BK7, Porro |
| Waterproof | IP3 |
| Product color | Yellow/green/black/maple |
| Product size | 195×184×65mm |
| Unit weight | 949g |
| Accessories weight | 292g (cloth bag+strap+box) |
| Color box size | 223×207×86mm |
| Packing volume | 20pcs/ctn |
| Carton size | 45×45×44cm |
| GW/NW | 26kgs / 25kgs |
| Product Grade | C+ |
| Ocular lens | 4E3G |
| Objective lens | 2E1G |
| Optical material | All lens and prism: optical glass |
| Coating | MC |
| Focusing system | Center focus |
| Body material | Aluminum |
| Surface treatment | PVC cover |
| Eyecups | PVC eyecup |
| Resolving power | 5.8"-6.18" |
| Relative brightness | 25-5.95 |
| Twilight factor | 32.23-22.3 |
| Transmittance | 69% |
| Ocular adjustment | -5 TO +5 DIOPTER |
| Adjustable eye pupil | 59.2mm-73mm |
| Accessories | Soft bag, Strap, Lens cleaning cloth, Desiccant |
Zoom binoculars refer to binoculars with adjustable magnification. Unlike fixed power binoculars, users can change magnification continuously to observe distant targets or widen field of view. J01-102450 supports 10X-24X zoom.
Porro prism is a traditional binocular optical structure. BK7 optical glass prism has stable optical property, good light transmission and cost-effective performance, widely used in mid-range outdoor binoculars.
MC means multi-coating. Multiple anti-reflection coatings applied on lens surfaces, reduce light reflection and improve image brightness and contrast.
IP3 means the device can resist solid objects over 2.5mm and prevent water splashing. It can work normally in light rain, but cannot be immersed in water.
