Ferolix JR-001R/G/B HD-101 Laser Red Dot Sight | Compact Laser Reflex Optic
Application Scenarios
Built for civilian sport‑shooting and recreational hunting. Compact footprint plus auxiliary laser function, fits users who want dual‑aiming capability without adding separate laser accessories. Only for B2B wholesale partners, prohibited for tactical‑law‑enforcement scenarios.
Compatible Equipment
Fits standard Picatinny‑21mm rail. Works with civilian sport‑shooting rifles, recreational hunting firearms, airsoft and paintball recreational markers. Extra adapter required for non‑standard rails.
Instructions for Use
Fasten optic onto Picatinny‑21mm rail with included wrench.
Install CR2032 for reflex unit and LR44 for laser module following polarity marks.
Switch reflex and laser separately, adjust brightness according to surrounding light.
Complete independent zero‑ing for reflex dot and laser at shooting‑range.
Power off both functions after shooting to extend battery life.
Keep dust‑cover attached and store in aircraft box when not in service.
Precautions
Do not view LED light or laser beam directly, avoid permanent eye harm.
IPX4 splash‑proof only; never submerge device in water.
Reflex reticle and laser must each be zero‑calibrated before field shooting.
Take out both batteries for long‑term storage to prevent liquid leakage damage.
Restrict usage to civilian recreational sport‑shooting & hunting, military‑tactical application forbidden.
Use original lens cloth only; rough paper or fabric scratches optical coating.

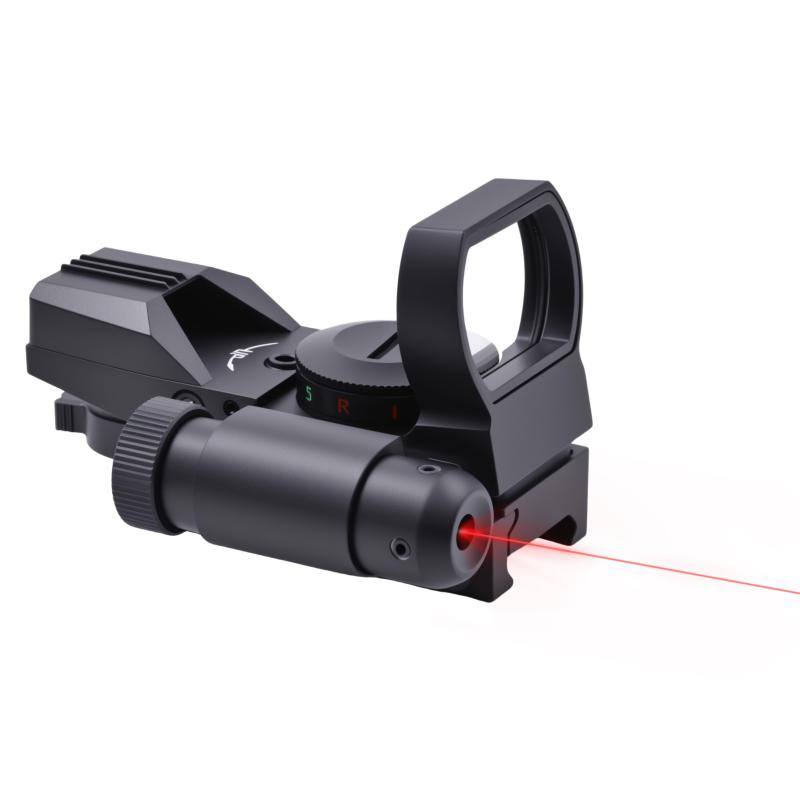

The JR‑001R/G/B series brings laser pointer integration to the compact HD‑101 platform. The 22×33mm objective window keeps the overall footprint small while adding a visible laser for versatile aiming in civilian outdoor scenarios.
Red/green dual‑color reticle with 5 brightness levels each. Silver‑coated lens. Anodized 6061 aluminum housing, 33×55×81mm. Windage/elevation ≥±50 MOA, 1 MOA clicks. IPX4 splash resistance. 800g shock resistance over 100 cycles.
Two batteries power the unit: CR2032 for the reflex reticle and LR44 for the laser module. Picatinny‑21mm mount. Aircraft box packaging with dust cover, lens cloth and manual.
| 参数项 | 规格 |
|---|---|
| Magnification | 1× |
| Objective Lens | 22mm × 33mm |
| Product Color | Black |
| Product Dimensions | 33mm × 55mm × 81mm |
| Body Material | 6061 Aluminum Alloy |
| Surface Treatment | Anodized |
| Lens Coating | Silver Coating |
| Reticle / Brightness | Red / Green Dual Color, 5 Levels Each |
| Laser Wavelength | Red / Green / Blue (optional per SKU) |
| Click Accuracy | 1 MOA @ 100 Yards |
| Windage Adjustment | ≥ ±50 MOA |
| Elevation Adjustment | ≥ ±50 MOA |
| Mount Interface | Picatinny‑21mm |
| Working Temperature | -20℃ ~ +50℃ |
| Waterproof Rating | IPX4 |
| Shock Resistance | 800g / 100 times, deviation ≤ 5 MOA |
| Battery | CR2032 + LR44 |
| Carton Size | 43.5 × 26.5 × 35.5 cm |
| Packing Quantity | 50 PCS / Carton |
| Carton Gross Weight | 16 kg |

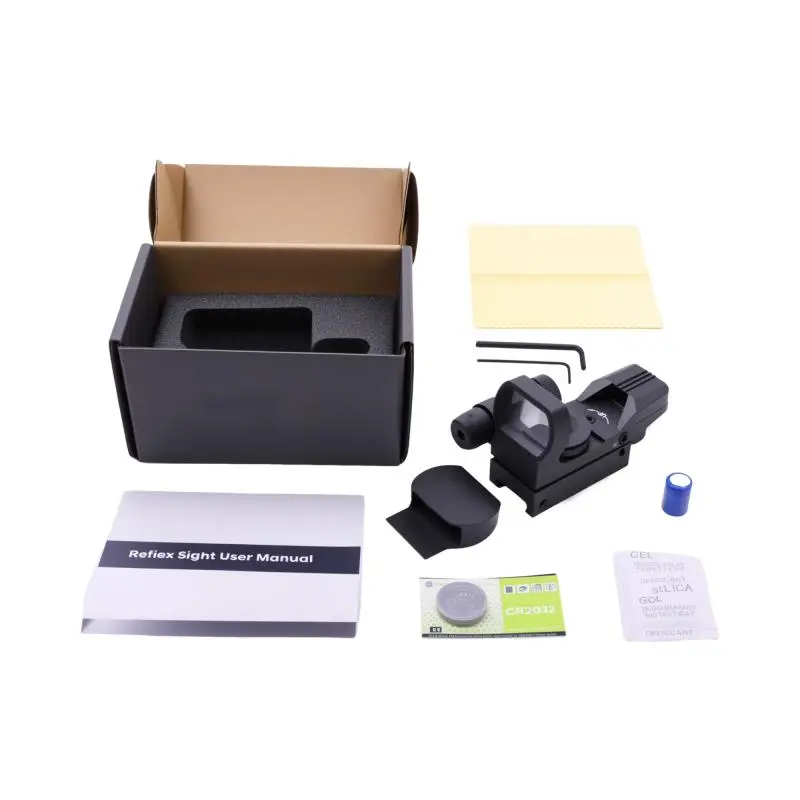

| Packing Accessories | Aircraft Box, Lens Cloth, Dust Cover, Manual, LR44 Battery, CR2032, Wrench ×2 |
The compact HD‑101 form factor with integrated laser addresses shooters who want laser aiming capability without adding a separate laser sight accessory. The dual‑battery design (CR2032 for reflex, LR44 for laser) allows independent power management. Red/green/blue laser options let distributors match local market preferences — green lasers dominate in bright‑sunlight markets, red in budget segments, blue for distinctive product positioning.
