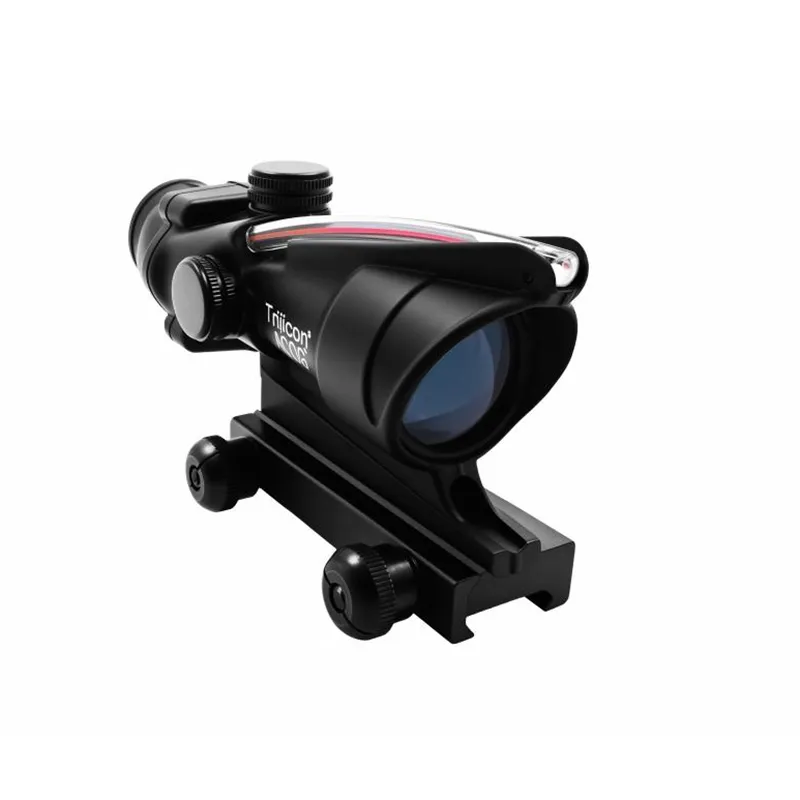

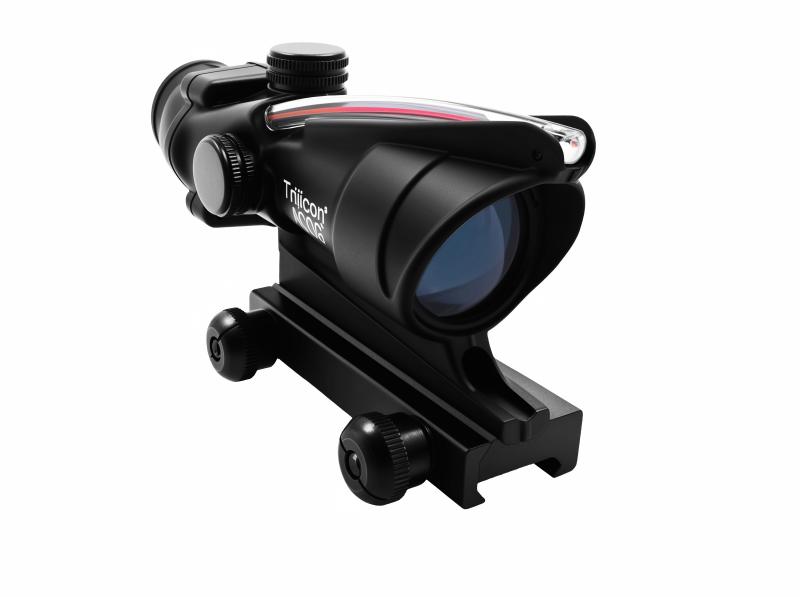

Ferolix JR-001 4×32 Fiber Optic Standard Prism Scope | Civilian Hunting Optics
The JR-001 is our entry-level fiber-optic illuminated prism scope, designed for civilian hunting and recreational sport-shooting users who prefer a battery-free aiming solution. The fiber optic system harvests ambient light to illuminate the reticle, ensuring reliable performance without battery dependency.
Optical Performance: 4× fixed magnification, 32mm Objective Lens, 7.0° field of view angle, 38mm eye relief, 8mm exit pupil diameter. The etched glass reticle remains visible even without illumination.
Construction: 6061 aluminum alloy body with spray-paint surface treatment. Compact dimensions of 150mm×53mm×74mm. Windage and elevation adjustment range ≥±50 MOA with tactile click turrets.
Durability: Tested to withstand 1000g recoil shock for 100 cycles with deviation within 5 MOA. IPX6 waterproof rating protects against rain and dust. Operating temperature range: -20℃ to +50℃.
Mounting: Standard Picatinny-21mm rail interface for broad compatibility.
B2B Services: OEM silk-screen logo, custom packaging, bulk order fulfillment. Supplied exclusively to overseas distributors and wholesalers — not for direct end-user retail.
| 参数项 | 规格 |
|---|---|
| 型号 Model | JR-001 |
| 放大倍率 Magnification | 4× |
| 物镜口径 Objective Lens | 32mm |
| 视场角 Field of View | 7.0° |
| 出瞳距离 Eye Relief | 38mm |
| 出瞳直径 Exit Pupil Diameter | 8mm |
| 产品尺寸 Dimensions | 150mm × 53mm × 74mm |
| 风偏调节范围 Windage Adjustment | ≥ ±50 MOA |
| 高低调节范围 Elevation Adjustment | ≥ ±50 MOA |
| 机身材质 Body Material | 6061 Aluminum Alloy |
| 表面处理 Surface Treatment | Spray Paint |
| 分划照明 Light Source | Fiber Optic (No Battery Required) |
| 工作温度 Working Temperature | -20℃ ~ +50℃ |
| 抗震性能 Shock Resistance | 1000g / 100 times, deviation ≤ 5 MOA |
| 防水等级 Waterproof Rating | IPX6 |
| 安装接口 Mount | Picatinny-21mm |
| 外箱尺寸 Carton Size | 66.5 × 21.8 × 40 cm |
| 外箱重量 Carton Weight | 16 kg |
| 装箱数量 Packing Quantity | 25 PCS / Carton |

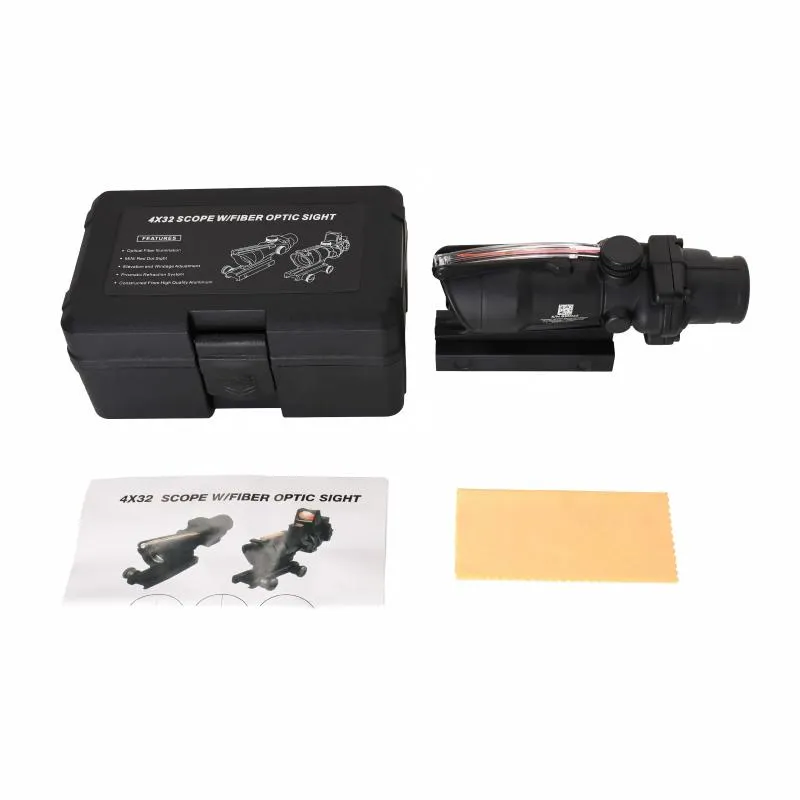

| 标准配件 Accessories | Plastic Box ×1, Lens Cloth ×1, Manual ×1 |
A fiber optic prism scope uses a prism-folded optical path combined with a fiber-optic light collection system that channels ambient daylight onto an etched reticle, creating a bright aiming point without batteries or electronic illumination. The 4×32 configuration balances magnification and field of view, making it well-suited for close-to-mid-range civilian hunting. The 6061 aluminum housing provides structural rigidity while keeping weight manageable. Fiber-optic illumination is valued for its zero-maintenance reliability — no batteries to replace in the field. This model represents a cost-effective entry point into prism-style aiming optics for budget-conscious outdoor enthusiasts.
