Ferolix JR‑029B V01B Inner Red Dot | Tube Reflex with Dedicated Mount Included
Application Scenarios
Civilian recreational hunting and sport‑shooting. Complete retail‑ready kit with dedicated mount included, end‑users can finish installation right out‑of‑box. For B2B wholesale partners, reduces extra accessory stocking work. Not for tactical‑law‑enforcement usage.
Compatible Equipment
Fits standard Picatinny‑21mm rail. Dedicated matching mount included. Works with civilian sport‑shooting rifles, recreational hunting firearms, airsoft and paintball recreational markers. Adapter needed for non‑standard rails.
Instructions for Use
Attach the supplied dedicated mount onto Picatinny‑21mm rail and tighten screws; then install tube optic onto this mount.
Insert CR2032 battery following polarity marks inside battery compartment.
Power‑on, adjust brightness among 8 daylight and 2 NV levels for surrounding lighting.
Perform windage‑elevation zero‑ing on shooting‑range before field‑use.
Auto‑sleep activates after 4‑minute idle period; shake sight to wake.
Power‑off and remove battery for long‑term storage; store all parts inside color box.
Precautions
Do NOT stare directly into LED light source to avoid eye injury.
IPX7 for short‑time shallow submersion; do not leave immersed for extended time.
Always complete zero‑calibration at actual shooting‑distance before outdoor usage.
Remove battery for long‑term storage to avoid electrolyte leakage damaging tube‑internal electronics.
Civilian recreational sport‑shooting and hunting only; military‑tactical application prohibited.
Clean lens only with original supplied lens cloth; rough fabrics scratch optical coating.
JR‑029B V01B is the complete‑package variant of V01 compact tube inner red dot. All optical and mechanical specifications keep consistent with V01; the main difference is that a dedicated matching mount is pre‑included inside retail‑oriented color box, instead of bare‑optic plastic box.

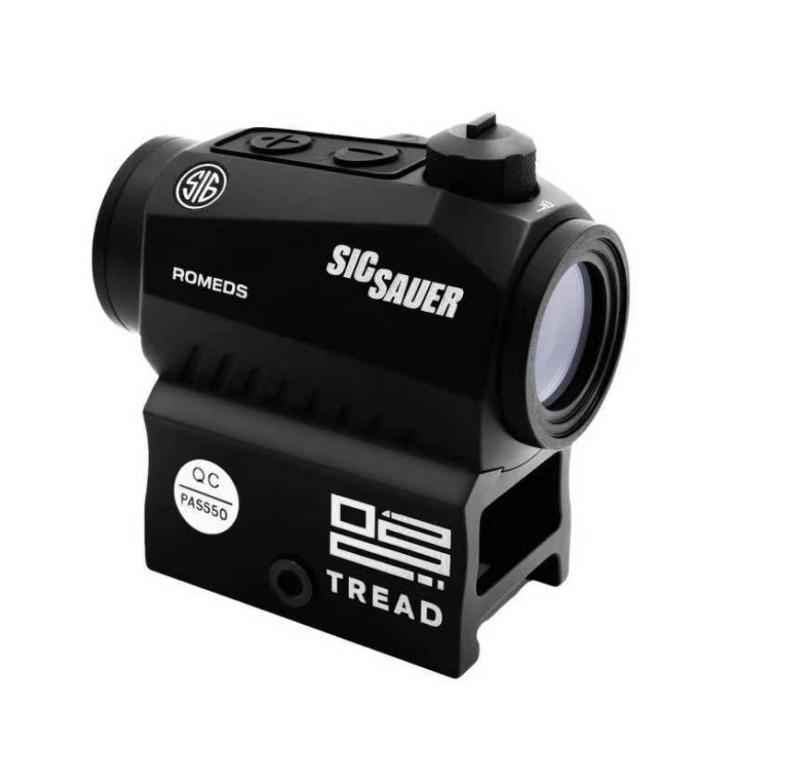

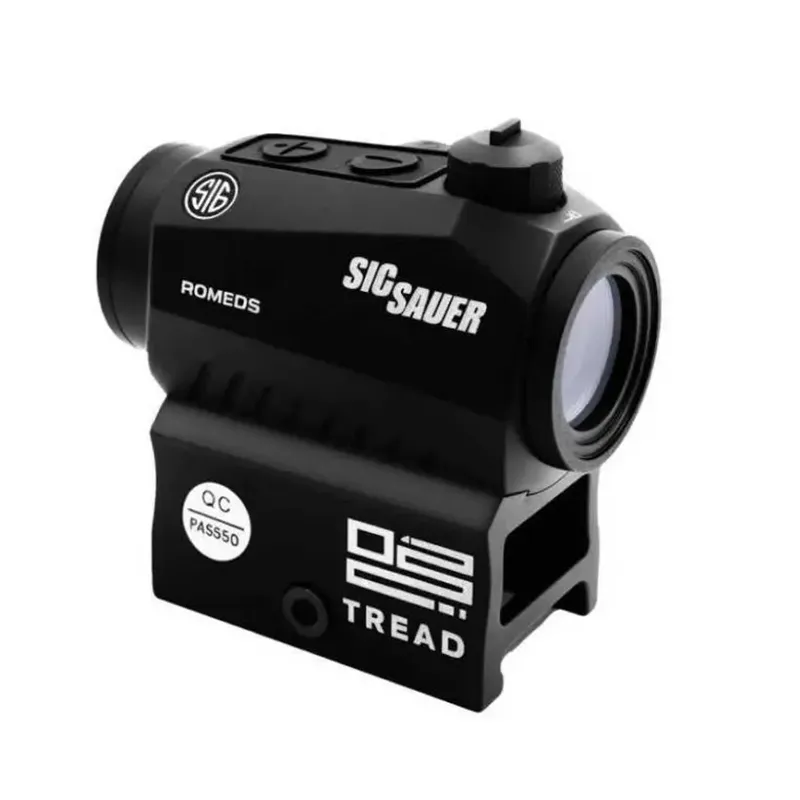

Body dimension 53×40×38 mm, 20 mm Objective Lens, red reticle 8+2NV brightness settings, red‑coated lens, 6061‑T6 anodized aluminum housing. 38.5 mm center height. ≥±50 MOA windage‑elevation adjustment, 1 MOA click increments. IPX7 waterproof, 1500g shock‑resistance (100 cycles, ≤2 MOA deviation). CR2032 battery, 4‑minute shake‑to‑wake function.

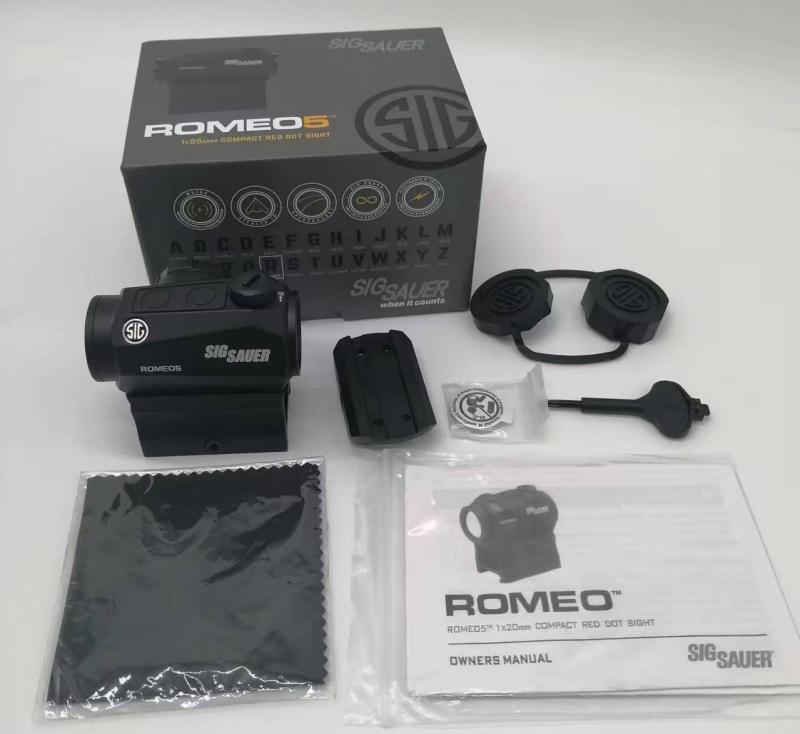

Package content: lid‑base color box, dedicated mount assembly, dust‑cover, lens cloth, manual, wrench set and CR2032 battery. Export carton contains 50 pieces.
B2B OEM supports custom logo marking and private‑label box printing. Wholesale‑only for overseas optics distributors, no direct retail sales.
| 参数项 | 规格 |
|---|---|
| Magnification | 1× |
| Objective Lens | 20mm |
| Product Color | Black |
| Product Dimensions | 53mm × 40mm × 38mm |
| Body Material | 6061 Aluminum Alloy |
| Surface Treatment | Anodized |
| Lens Coating | Red Coating |
| Reticle / Brightness | Red, 8 Levels + 2 NV |
| Click Accuracy | 1 MOA @ 100 Yards |
| Windage Adjustment | ≥ ±50 MOA |
| Elevation Adjustment | ≥ ±50 MOA |
| Mount Interface | Picatinny‑21mm (Mount included) |
| Center Height | 38.5mm |
| Working Temperature | -20℃ ~ +50℃ |
| Waterproof Rating | IPX7 |
| Shock Resistance | 1500g / 100 times, deviation ≤ 2 MOA |
| Battery | CR2032 |
| Wake‑up Function | Sleep after 4 min; shake to wake |
| Carton Size | 49 × 26.5 × 35.5 cm |
| Packing Quantity | 50 PCS / Carton |
| Carton Gross Weight | 15 kg |
| Packing Accessories | Lid & Base Color Box, Lens Cloth, Manual, Dust Cover, Wrench, CR2032, Mount |
V01B solves distributors’ real‑world pain‑point: end‑customers need separate purchase of mounting hardware. By bundling dedicated mount and adopting retail‑ready color‑box packaging, this SKU delivers out‑of‑box usability. All internal optics, waterproof and shock‑proof performance are identical to base‑model V01. It represents a ready‑to‑sell enclosed‑tube solution for B2B partners.
