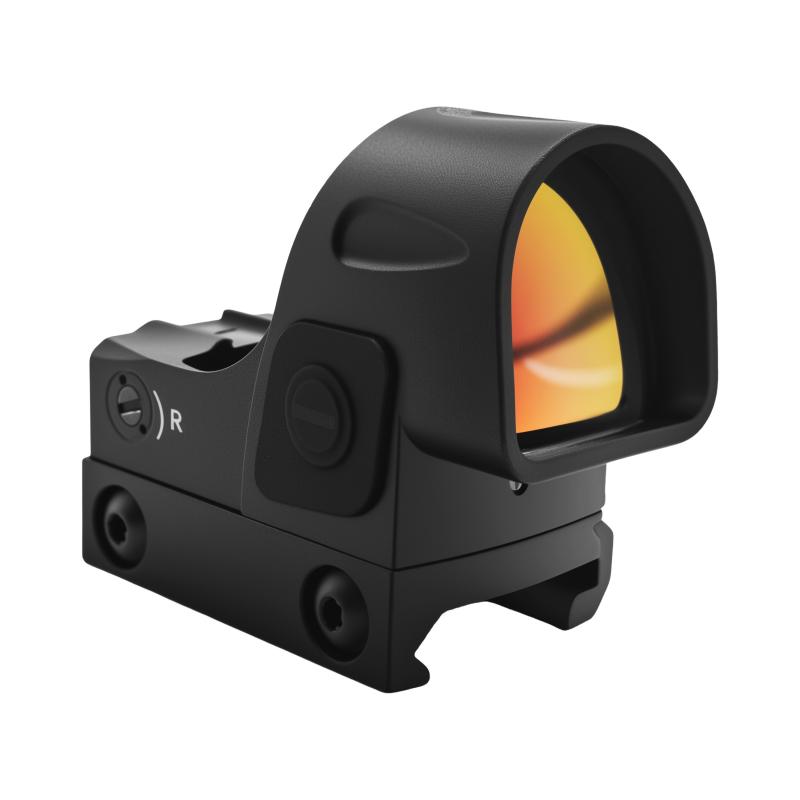

Ferolix JR‑016D V16D Mini RMR 6‑Dot Red Dot | Multi‑Dot Micro Reflex Sight
Application Scenarios
Civilian handgun sport‑shooting and hobby range practice. Six‑dot multi‑reticle provides extra reference markers for quick hold‑over estimation. B2B wholesale‑only; not for tactical‑law‑enforcement usage.
Compatible Equipment
Supports Picatinny‑21mm rail and RMR footprint. Includes MOS adapter plate, fits civilian sport‑shooting handguns and rifles with corresponding cut. For civilian recreational use only. Adapter required for non‑standard slide cuts.
Instructions for Use
Secure optic to RMR footprint or Picatinny‑21mm rail with included wrench.
Insert CR1632 battery following polarity marks inside battery compartment.
Power‑on, adjust brightness among 8 daylight and 2 night‑vision levels.
Complete windage‑elevation zero‑ing at shooting‑range before live‑fire use.
Unit auto‑sleeps after 4‑minute idle; shake sight to wake and restore brightness setting.
Remove battery for long‑term storage; cover lens and store inside color box.
Precautions
Do NOT stare directly at LED light source to avoid eye injury.
IPX7 allows short‑term submersion; avoid continuous underwater placement.
Always finish zero‑calibration at actual shooting‑distance before field‑usage.
Remove battery during long‑time storage to prevent electrolyte leakage damaging micro‑electronics.
Civilian recreational sport‑shooting only; military‑tactical application prohibited.
Clean lens only with the supplied lens cloth.
The JR‑016D V16D shares the wide‑window RMR body of the V16, with the key difference being a six‑dot reticle pattern. The additional dots provide more aiming reference points, which some shooters find useful for range estimation or quick holdover reference.
Same wide‑window specs: 23×24mm objective, 55×29×36mm body. Red 6‑dot reticle with 8 brightness levels + 2 NV settings. Red‑coated lens. Anodized 6061 aluminum. Windage/elevation ≥±50 MOA, 1 MOA clicks.
IPX7 waterproof. 1500g shock resistance with ≤2 MOA deviation. CR1632 battery. RMR mount with MOS adapter plate. Motion wake‑up.
Full‑set accessories in color box. 50 PCS per export carton. B2B OEM service supports custom reticle layout, laser‑engraved logo and private‑label packaging. Wholesale‑only for overseas optics distributors.
| 参数项 | 规格 |
|---|---|
| Magnification | 1× |
| Objective Lens | 23mm × 24mm |
| Product Color | Black |
| Product Dimensions | 55mm × 29mm × 36mm |
| Body Material | 6061 Aluminum Alloy |
| Surface Treatment | Anodized |
| Lens Coating | Red Coating |
| Reticle / Brightness | Red 6‑Dot, 8 Levels + 2 NV |
| Click Accuracy | 1 MOA @ 100 Yards |
| Windage Adjustment | ≥ ±50 MOA |
| Elevation Adjustment | ≥ ±50 MOA |
| Mount Interface | Picatinny‑21mm / RMR |
| Working Temperature | -20℃ ~ +50℃ |
| Waterproof Rating | IPX7 |
| Shock Resistance | 1500g / 100 times, deviation ≤ 2 MOA |
| Battery | CR1632 |
| Wake‑up Function | Sleep after 4 min; shake to wake |
| Carton Size | 48 × 25 × 26 cm |
| Packing Quantity | 50 PCS / Carton |
| Carton Gross Weight | 12 kg |

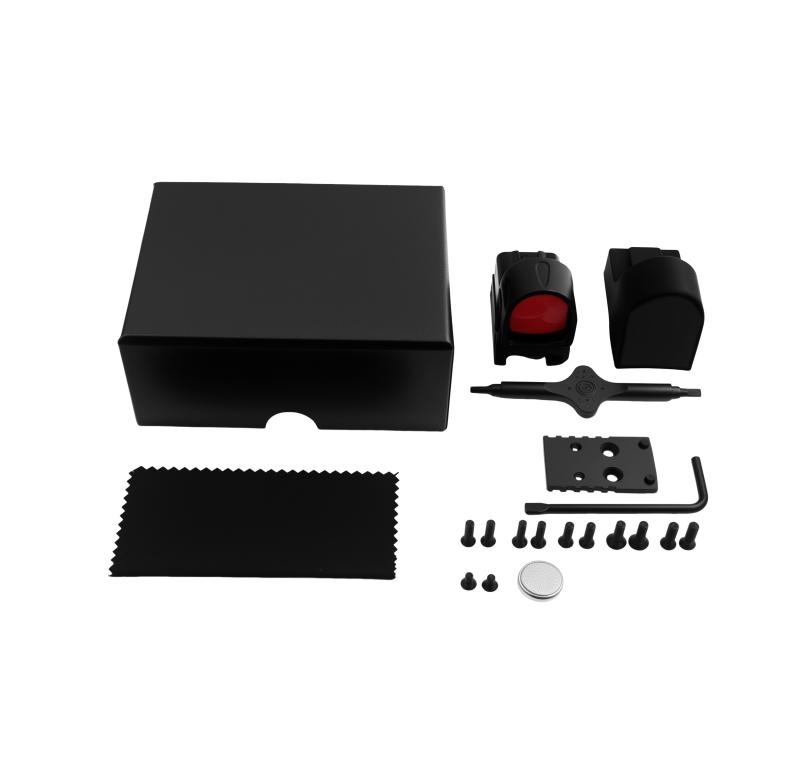

| Packing Accessories | Lid & Base Color Box, Lens Cloth, Manual, Dust Cover, MOS Adapter Plate, Wrench ×2, CR1632, Screw Set ×7 |
Six‑dot reticle patterns expand the aiming reference beyond a single center dot or three‑dot arrangement. The additional dots can serve as rough holdover or range‑estimation markers in civilian sport‑shooting scenarios. The V16D shares all mechanical and optical platform with V16 — only the LED reticle pattern differs. This platform‑sharing allows distributors to offer multiple reticle configurations within one hardware family.
