Application Scenarios

For civilian sport‑shooting and recreational hunting. Built‑in USB‑C rechargeable design eliminates repeated coin‑cell battery purchases, fits eco‑conscious hobby‑user segments. For B2B wholesale only; not for tactical or law‑enforcement deployment.

Compatible Equipment

Works with standard Picatinny‑21mm rail. Compatible with civilian sport‑shooting rifles, recreational hunting firearms, airsoft and paintball recreational markers. Adapter required for non‑standard rails.

Instructions for Use

1. Secure sight to Picatinny‑21mm rail and fasten screws using included wrench.

2. Complete first‑time charging via Type‑C cable until LED turns solid green.

3. Switch power‑on and adjust reticle brightness according to ambient light.

4. Perform windage‑elevation zero‑ing on shooting‑range prior to field use.

5. Re‑charge promptly once indicator signals low power.

6. Power off fully when storing long‑term; fit dust‑cover and store inside color box.

Precautions

1. Avoid direct eye exposure to internal LED aiming source.

2. IPX4 splash‑proof only; must not immerse unit in water. Keep charging port covered in wet environments.

3. Always finish zero‑calibration at practical shooting distance before outdoor usage.

4. Do not over‑charge battery; avoid storing device in high‑temperature surroundings.

5. For civilian recreational sport‑shooting & hunting only; military‑tactical applications are forbidden.

6. Clean lens surface exclusively with provided lens cloth to prevent coating scratches.

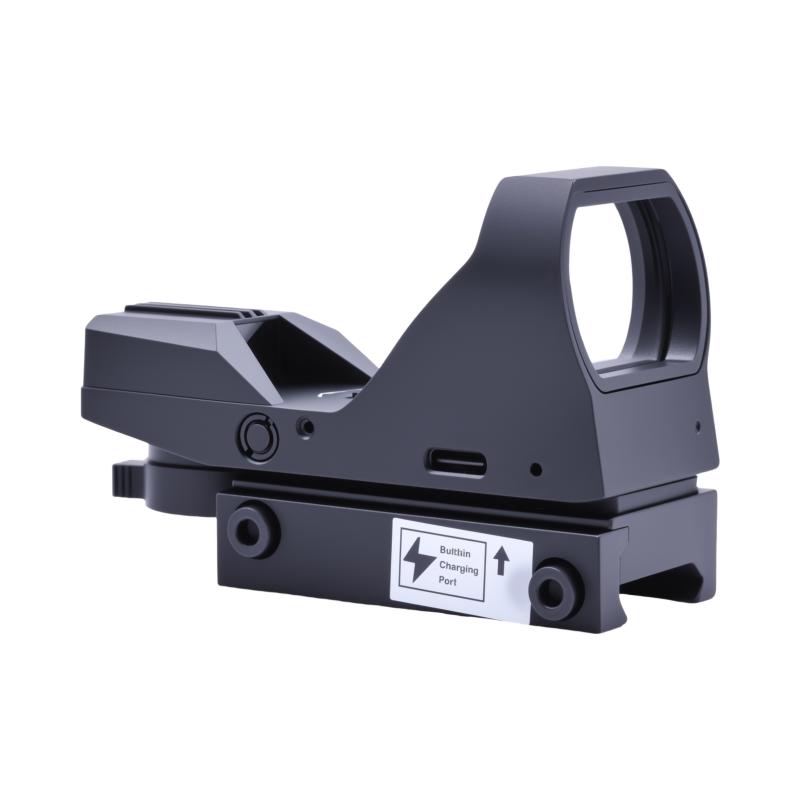

JR‑006 HD‑101 rechargeable variant removes disposable‑battery dependency by integrating a 200 mAh 3.7 V lithium‑polymer cell with universal Type‑C USB charging interface. Visible status LED displays red during charging and green upon full charge. Shock‑resistance performance upgraded to 1000g compared to battery‑powered HD‑101 models for better internal‑electronics protection under recoil.

Optical performance maintains HD‑101 specifications:1× magnification,22×33 mm objective opening, red‑green dual‑color reticle offering five brightness levels for changing ambient light, silver‑coated lens for balanced light transmission.

Housing constructed from 6061‑T6 hard‑anodized aluminum alloy; physical dimensions:33×55×81 mm. Windage‑elevation turrets provide ≥±50 MOA total adjustment range with standard 1 MOA click increments. IPX4 splash‑resistant construction. Shock testing:1000g impact repeated for 100 cycles, point‑of‑impact deviation ≤5 MOA.

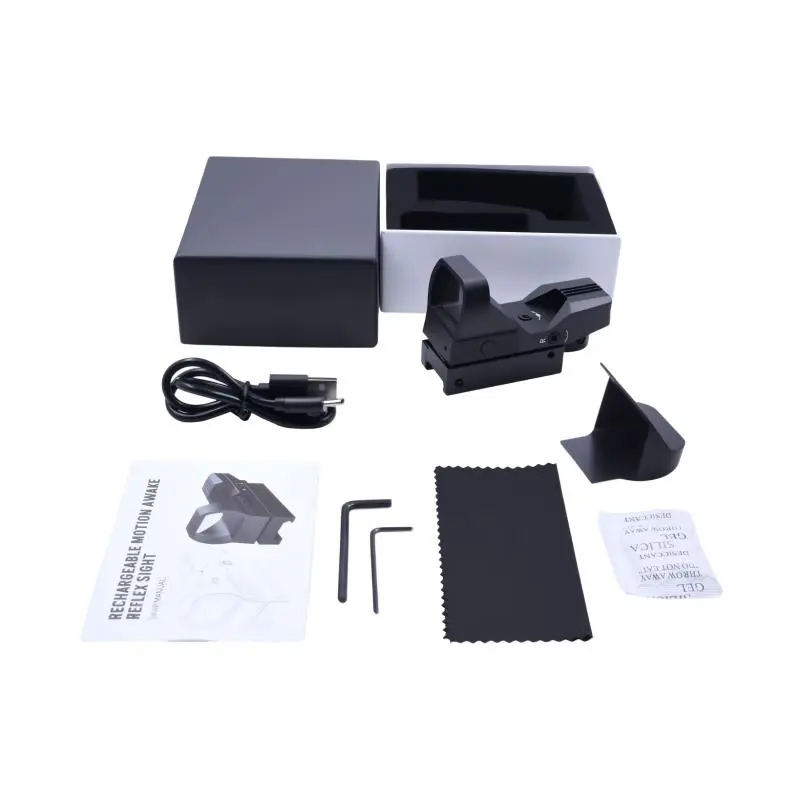

Picatinny‑21 mm mounting interface. Accessories:Type‑C charging cable, dust‑cover, lens cleaning cloth, instruction manual and two‑piece wrench set, packed inside lid‑base color box.

B2B manufacturing offers custom logo marking and custom retail‑box printing. Large‑volume wholesale shipment for overseas optics distributors; no direct sales to individual end‑users.
