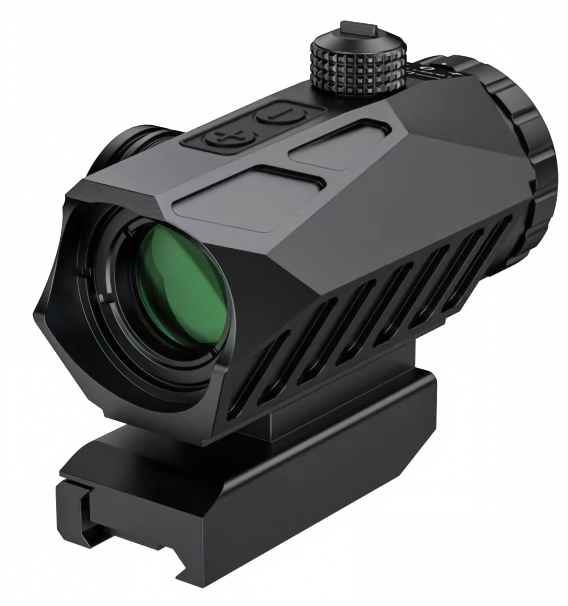

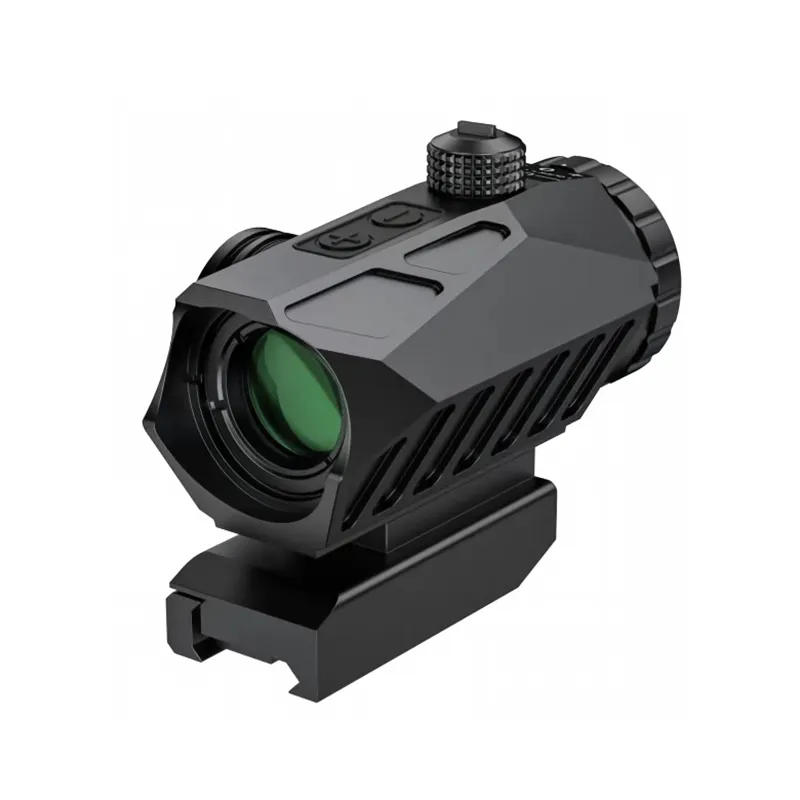

JR‑004 L02 is built on our mature 85‑millimeter compact 3× prism‑scope hardware platform, identical in mechanical specs to JR‑003 L01. The core difference lies in its alternative custom‑designed etched glass reticle.

Within civilian sport‑shooting markets, end‑users hold highly subjective preferences for reticle shapes: crosshair, chevron, ballistic compensation patterns all attract different buyer groups. By launching this variant with distinct reticle, distributors can expand their product portfolio in the hot‑selling compact‑3x prism‑scope category without investing in entirely new tooling and hardware development.

Optical parameters:3× magnification,7.5° field‑of‑view,72 mm eye‑relief,7.6 mm exit pupil. 5‑step adjustable red‑LED reticle illumination runs on standard CR2032 coin battery; etched reticle remains functional after battery drains.

6061 hard‑anodized aluminum alloy forms the rugged housing. Windage and elevation adjustment range ≥±50 MOA. Shock‑resistance rating reaches 1200g for 100 impact cycles with ≤5 MOA point‑of‑impact deviation. IPX7 waterproof for rainy outdoor environments, operating temperature‑20℃ ~ +50℃.

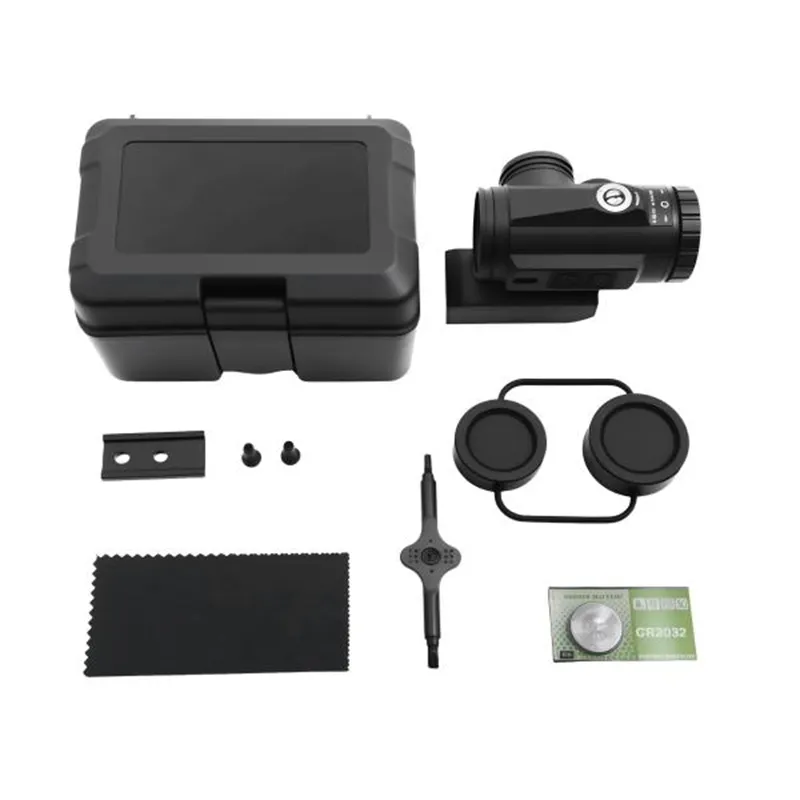

Supports Picatinny‑21mm rail installation. Full accessory set includes dual riser blocks, adjustment wrench, screw kit, lens dust‑covers, cleaning cloth and original CR2032 battery, packed inside heavy‑duty plastic storage box. Export carton holds total 50 pieces.

Our B2B factory supports further custom‑reticle development, laser‑engraved brand logo and private‑label packaging for large‑volume wholesale customers. Not for direct individual consumer sales.
