Application Scenarios

Ideal for civilian sport‑shooting, recreational hunting, outdoor shooting‑range practice and hobby target practice. Suited for B2B partners supplying entry‑level reflex optics for outdoor hobbyists. Not designed for tactical or law‑enforcement usage. Supplied only for wholesale distributors, not for individual end‑user retail sales.

Compatible Equipment

Fits devices with standard Picatinny‑21mm rail. Suitable for civilian sport‑shooting rifles, recreational hunting firearms, airsoft and paintball recreational markers. Not compatible with non‑standard proprietary rails without adapter.

Instructions for Use

1. Install the sight onto Picatinny‑21mm rail, fasten mounting screws with included wrench.

2. Insert CR2032 battery following polarity marking inside battery compartment.

3. Power‑on and toggle brightness level to match ambient light.

4. Perform windage and elevation zero‑ing at shooting range before formal use.

5. After usage, turn off power to save battery life.

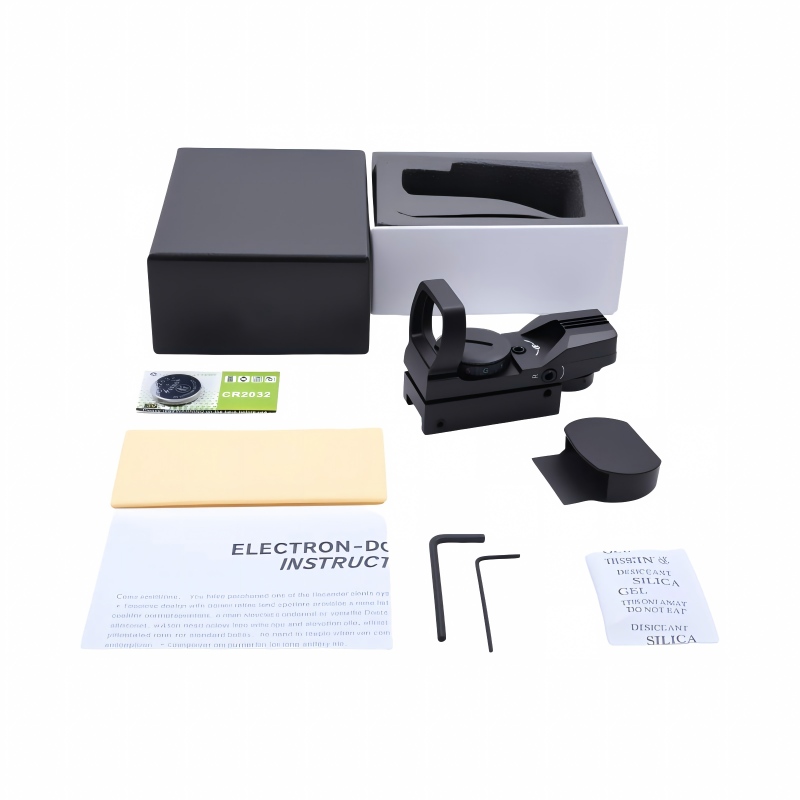

6. Store in the included protective dust‑cover box when not in use.

Precautions

1. Do NOT stare directly into LED light source, avoid eye injury.

2. IPX4 is splash‑proof, do not submerge into water.

3. Always zero the sight at actual shooting distance before field application.

4. Remove battery for long‑term storage to prevent electrolyte leakage damaging internal components.

5. Only apply to civilian recreational sport‑shooting & hunting; prohibited for military / law‑enforcement applications.

6. Keep lens surface clean, use only supplied lens cloth, avoid rough paper or cloth scratching optical coating.

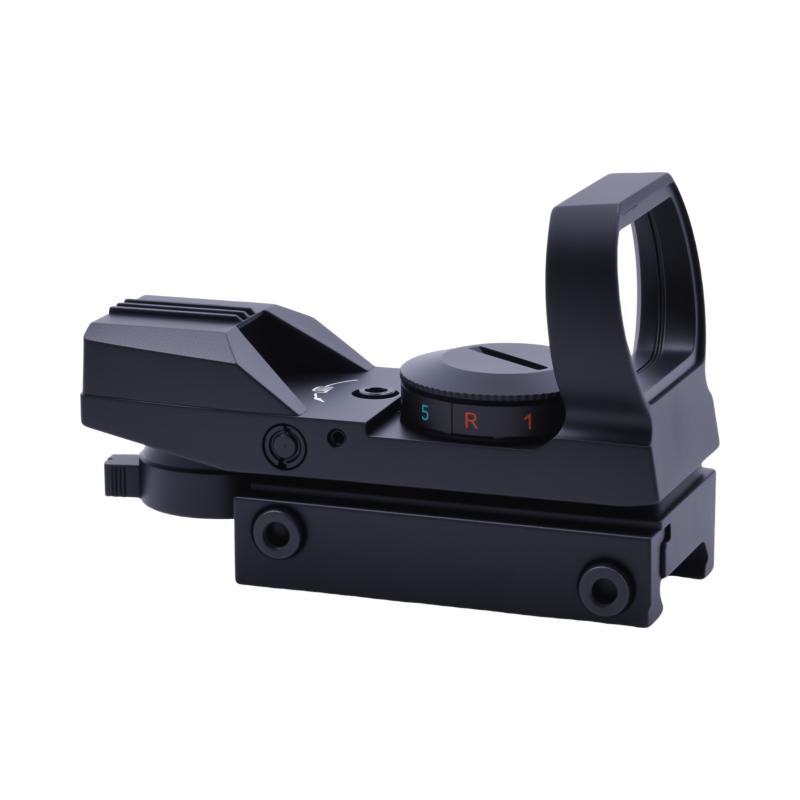

The JR‑001 HD‑101 is our standard open‑frame red dot reflex sight, designed as an entry‑to‑mid‑level option for civilian hunters and sport‑shooting enthusiasts. Its open‑frame design provides a wide, unobstructed field of view for fast target acquisition.

The 22×33mm objective window balances compact size with adequate light gathering. Red and green dual‑color reticle with 5 brightness levels each adapts to varied lighting conditions from bright daylight to dim twilight. Silver lens coating provides natural color transmission.

Built from 6061 aluminum alloy with anodized surface treatment, the housing measures 33×55×81mm. Windage and elevation turrets offer ≥±50 MOA adjustment range with 1 MOA click accuracy. IPX4 rating protects against water splash. Shock resistance tested at 800g over 100 cycles with deviation within 5 MOA.

Powered by CR2032 coin battery. Picatinny‑21mm mounting interface. Available in Black, Gray, Sand and Camo housing finishes for OEM partners.
