Application Scenarios

Suitable for civilian all-weather long-range Outdoor Observation, wildlife research, perimeter monitoring, search & rescue support and industrial inspection. Works day and night under rain, fog and haze. Wholesale distributors only, not for individual retail.

Compatible Equipment

Handheld binocular device. Powered by 8pcs 18650 batteries, also supports 12V DC via 4-pin quick plug. 9-pin composite interface for USB, RS232 and PAL output.

Instructions for Use

1. Load 8pcs 18650 batteries or connect 12V DC external power.

2. Power on; wait ≤6 minutes for cooled detector warm-up at 25°C.

3. Wait for GPS/Beidou lock outdoors.

4. Switch between thermal and visual channel; adjust 20-200mm zoom as needed.

5. Press LRF button to read target distance; view pitch/azimuth data on OLED.

6. Start real-time video recording; files stored in 128G memory.

7. Power off after use; remove batteries for long-term storage.

Precautions

1. Do not aim the optical lens directly at strong sunlight or laser sources.

2. The cooled detector requires warm-up before formal observation.

3. IP67 dustproof and short-time water resistance; do not submerge long-term.

4. Clean objective and eyepiece only with microfiber lens cloth.

5. For civilian outdoor observation only; not for tactical or law-enforcement use.

6. Store in dry, low-humidity environment.

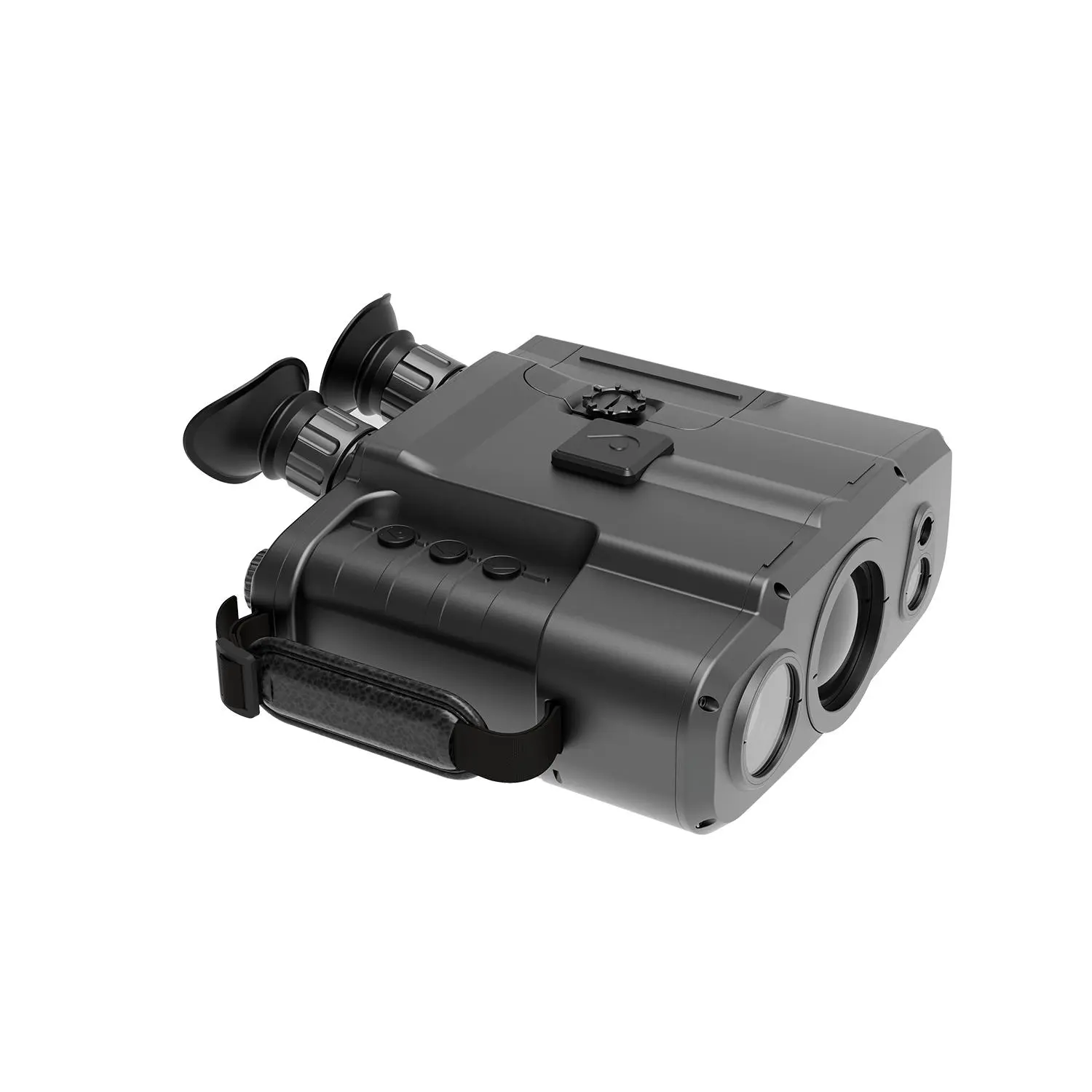

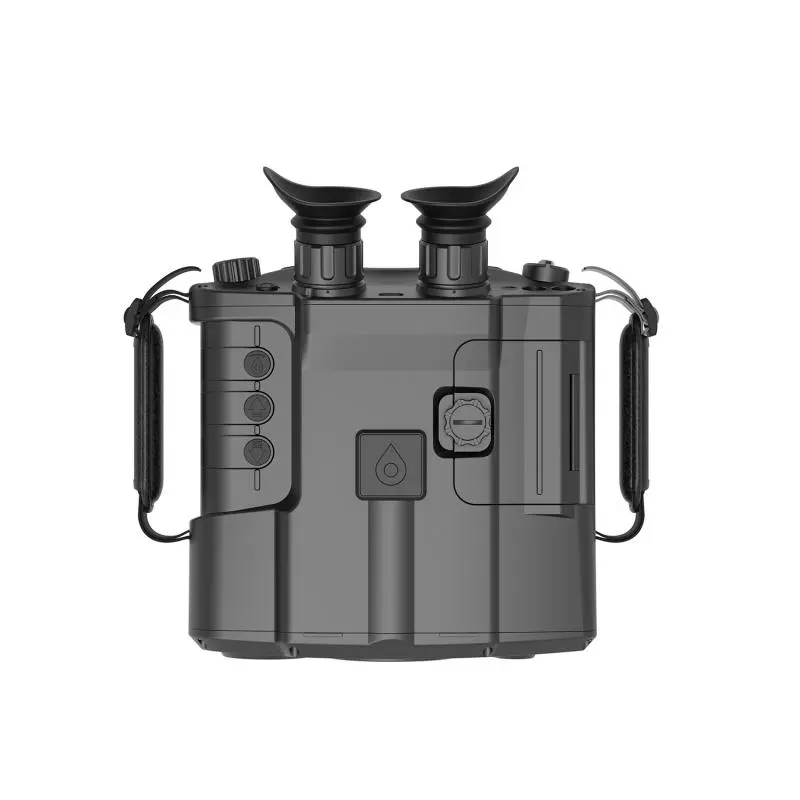

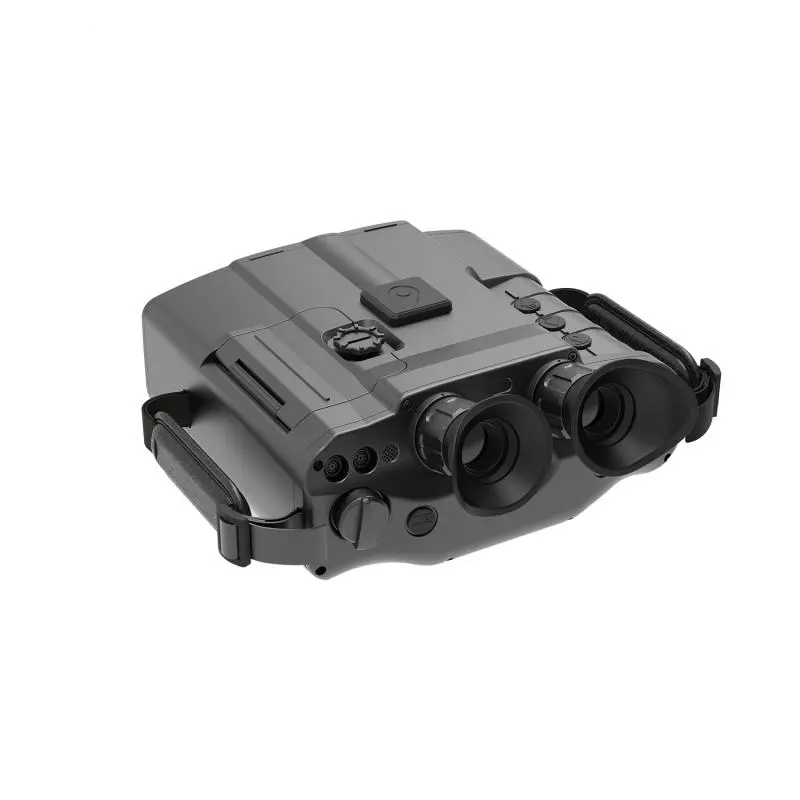

FP20C is a multi-purpose cooled MWIR thermal binocular built around a cooled MCT (mercury cadmium telluride) mid-wave infrared detector. It integrates thermal imaging, low-light visible imaging, eye-safe laser ranging and satellite positioning into one rugged handheld unit.

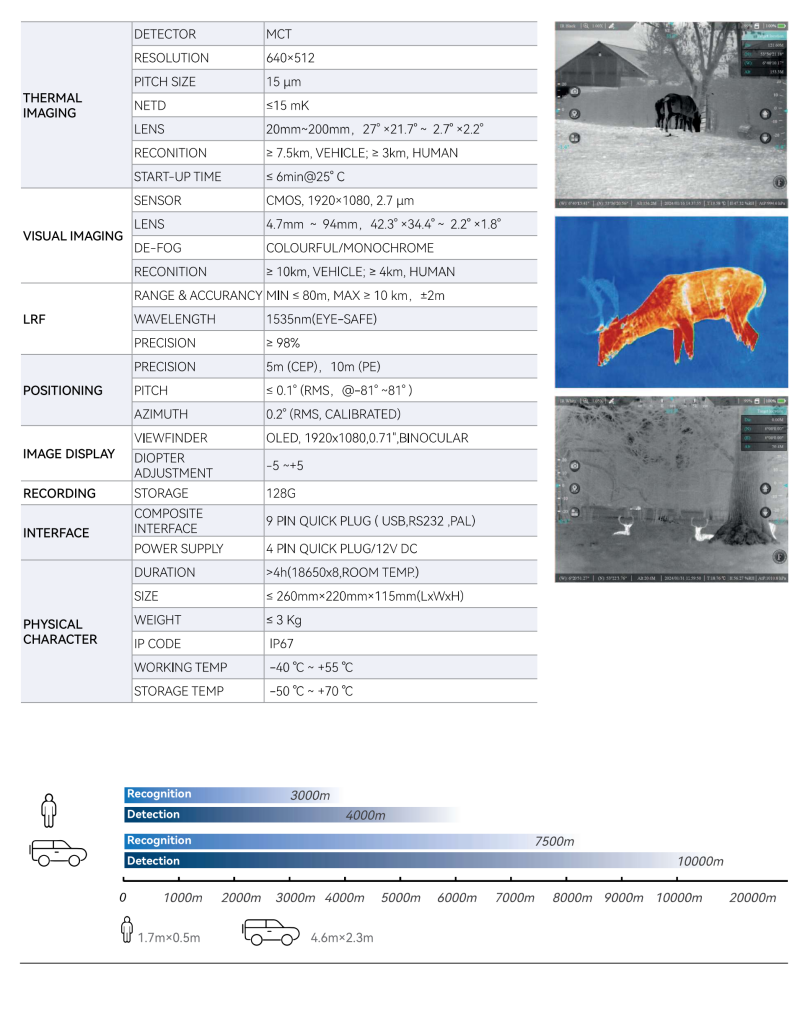

The thermal channel delivers 640x512 resolution, 15um pixel pitch and NETD ≤15mK. The 20-200mm continuous zoom lens spans FOV from 27°×21.7° wide to 2.7°×2.2° narrow. It recognizes vehicles beyond 7.5km and human targets beyond 3km; detection reaches 10km vehicle and 4km human. Warm-up time is ≤6 minutes at 25°C.

The visual channel uses 1920×1080 CMOS (2.7um) with 4.7-94mm zoom lens, FOV 42.3°×34.4° to 2.2°×1.8°, supporting colorful and monochrome defog modes. Visible channel recognizes vehicles ≥10km and humans ≥4km.

The built-in 1535nm eye-safe Laser Rangefinder measures from ≤80m to ≥10km with ±2m accuracy and ≥98% precision. GPS/Beidou positioning reaches 5m CEP. Pitch ≤0.1° RMS and azimuth 0.2° RMS (calibrated).

Image display uses a 0.71" 1920×1080 binocular OLED viewfinder with -5~+5 diopter adjustment. 128G built-in storage supports real-time video recording. Interfaces include 9-pin quick plug (USB/RS232/PAL) and 4-pin 12V DC power.

Physical: ≤260×220×115mm, ≤3kg, IP67, working temperature -40°C~+55°C, storage -50°C~+70°C.

B2B factory OEM, ODM and private label available. Wholesale only.
